Security Indicator Light Does not Blink [04/2018 -]: Procedure

1. Check for DTCs.

   Body Electrical > Smart Key > Trouble Codes

   Powertrain > Hybrid Control > Trouble Codes

   OK

   DTCs are not output.

   Result

   Proceed to
   OK
   NG

Result:

NG

GO TO DIAGNOSTIC TROUBLE CODE CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [04/2018 - 08/2020]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [08/2020 - 08/2021]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [08/2021 -]

Result:

OK

See step  2

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Smart Key / Active Test.
5. Perform the Active Test according to the display on the Techstream.

   Body Electrical > Smart Key > Active Test

   Tester Display	Measurement Item	Control Range	Diagnostic Note
   Immobiliser Indicator	Security indicator light	OFF/ON	-

   Body Electrical > Smart Key > Active Test

   Tester Display
   Immobiliser Indicator

   OK

   The security indicator light (radio and display receiver assembly) operates normally.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  4

Result:

OK

See step  3

1. When the immobiliser is set, check that the security indicator light (radio and display receiver assembly) blinks.*1

   OK

   The security indicator light (radio and display receiver assembly) blinks normally.

2. When the theft deterrent system is in the arming preparation state, check that the security indicator light (radio and display receiver assembly) illuminates.*2

   OK

   The security indicator light (radio and display receiver assembly) illuminates normally.

   Result

   Result	Proceed to
   *1 is NG (*2 is OK)	A
   *2 is NG (*1 is OK)	B

Result:

A

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [04/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 -]

Result:

B

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [04/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 -]

1. Disconnect the G40 certification ECU (smart key ECU assembly) connector.
2. Disconnect the G20 security indicator light (radio and display receiver assembly) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G40-20 (IND) - G20-16 (LP)	Always	Below 1 Ω
   G40-20 (IND) or G20-16 (LP) - Other terminals and body ground	Always	10 kΩ or higher
   G20-6 (GND) - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  5

1. Connect the G40 certification ECU (smart key ECU assembly) connector.
2. Connect the G20 security indicator light (radio and display receiver assembly) connector.

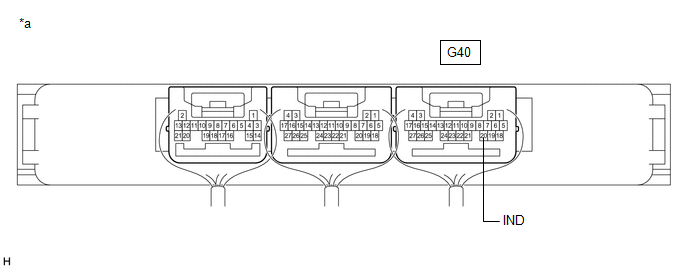

3. Using an oscilloscope, check the waveform.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Component with harness connected (Certification ECU (Smart Key ECU Assembly))

   -

   -

   Measurement Condition

   Tester Connection	Condition	Specified Condition
   G40-20 (IND) - Body ground	Power switch off → on (IG)	Pulse generation → Below 2 V

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE SECURITY INDICATOR LIGHT (RADIO AND DISPLAY RECEIVER ASSEMBLY). Refer to  REMOVAL [04/2018 -]

Result:

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [04/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 -]
