Power Source Mode does not Change to ON (READY) [04/2018 - 08/2020]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

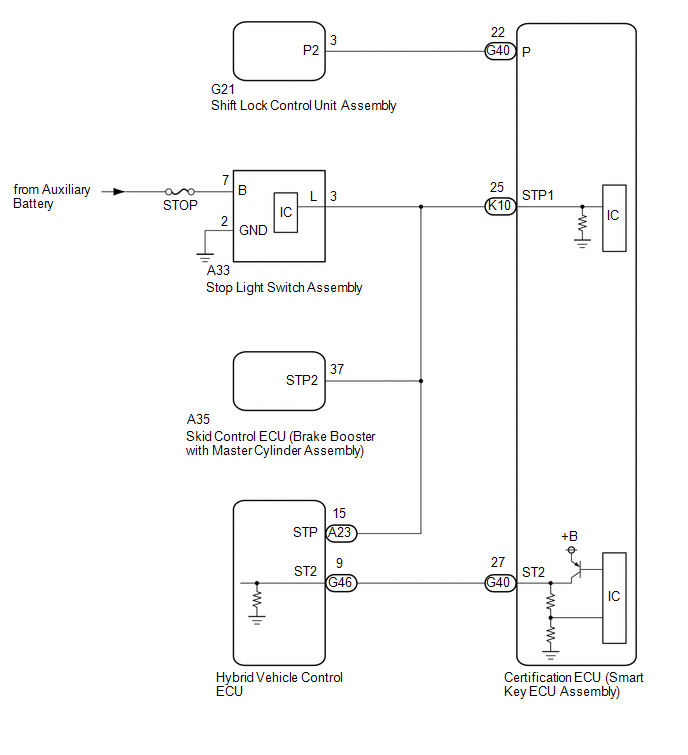

GTY874686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
