Section 82 (Electric Parking System - Diagnostic Codes & Symptom Tests (Hybrid))
>>
ELECTRIC PARKING BRAKE SYSTEM (for HV Model)
>>
DTC C13A6: Open or Short Circuit in Motor [04/2018 - 08/2019]
>>

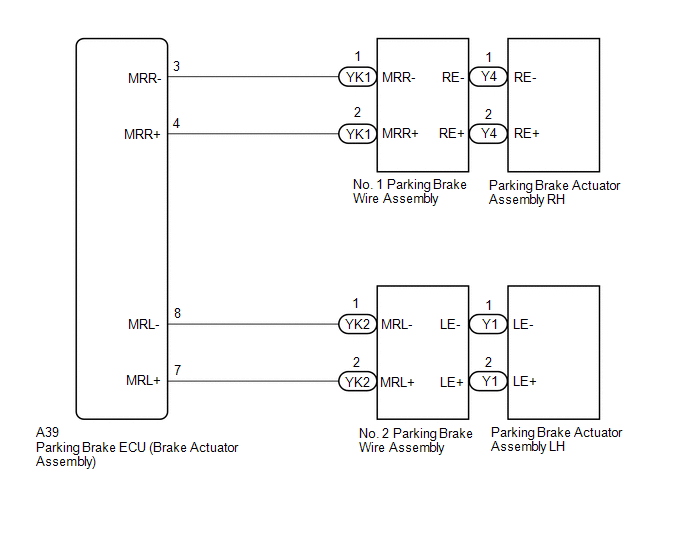

Wiring Diagram
DTC C13A6: Open or Short Circuit in Motor [04/2018 - 08/2019]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
