Parts Location [04/2018 - 08/2021]: Illustration
WARNING: This page is about a different variant/trim than selected.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

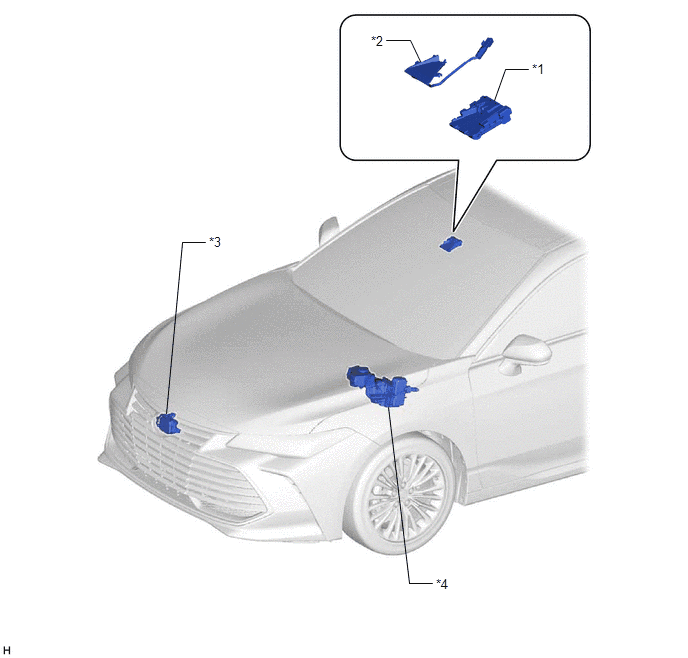

| *1 |
FORWARD RECOGNITION CAMERA |
*2 |
FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY |
| *3 |
MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
*4 |
BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY
- SKID CONTROL ECU |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

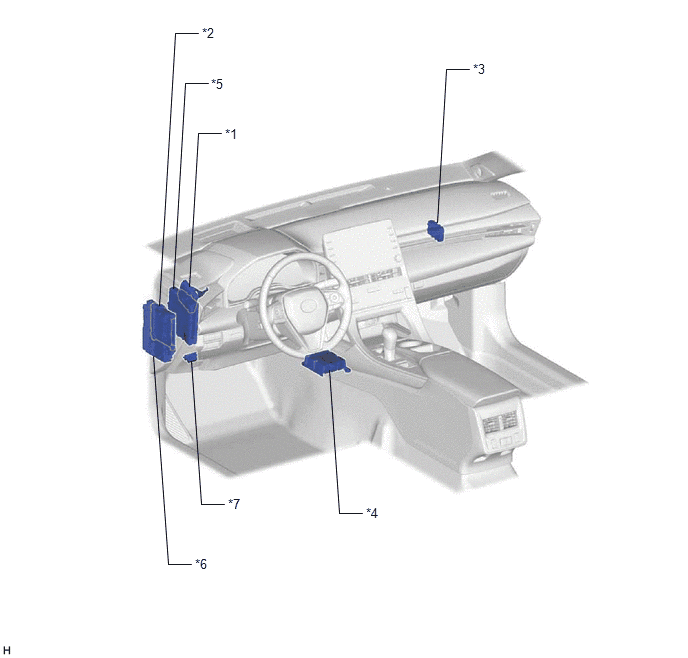

| *1 |
DRIVING SUPPORT ECU ASSEMBLY |
*2 |
MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 |
CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
*4 |
AIRBAG ECU ASSEMBLY
- YAW RATE SENSOR |
| *5 |
HYBRID VEHICLE CONTROL ECU |
*6 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 3 FUSE |
| *7 |
DLC3 |
- |
- |
