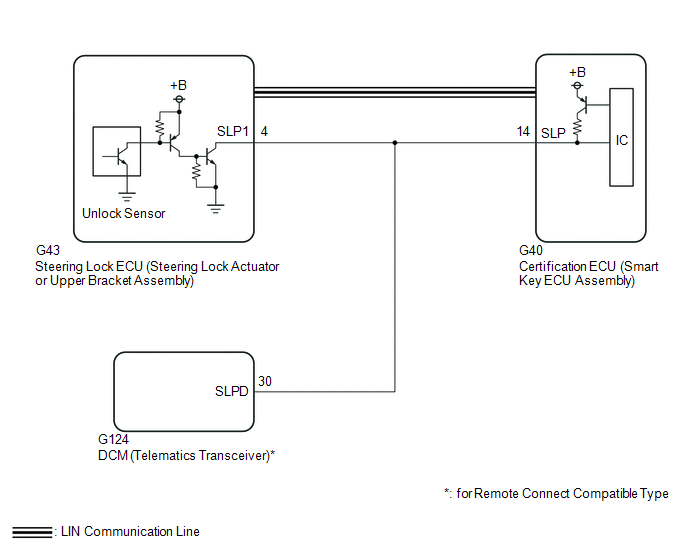

DTC B2285: Steering Lock Position Signal Circuit Malfunction [08/2020 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY1005493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
