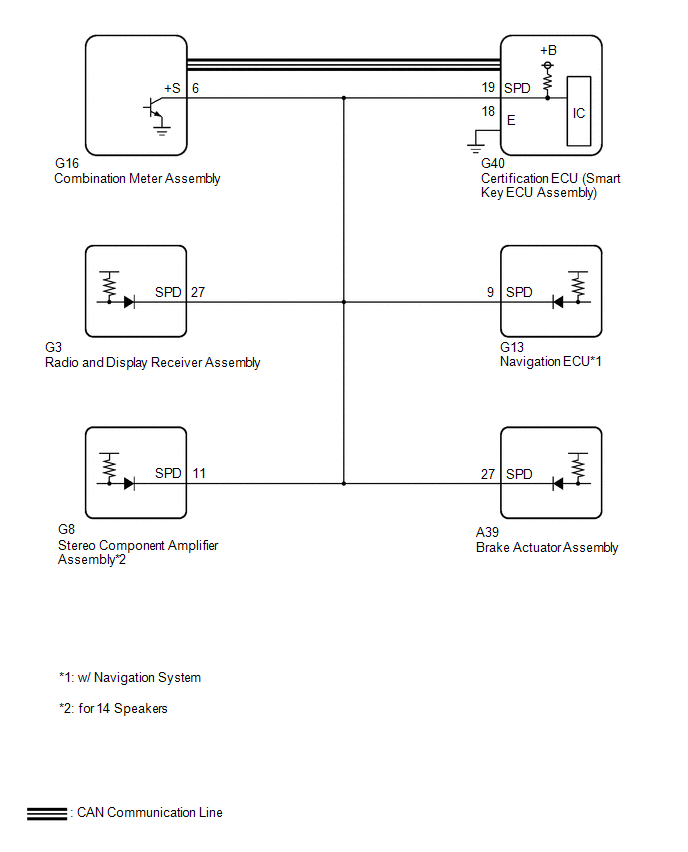

DTC B2282: Vehicle Speed Signal Malfunction; DTC B2283: Vehicle Speed Sensor Malfunction [08/2021 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY1026244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
