Parts Location [04/2018 - 08/2021]: Illustration
WARNING: This page is about a different variant/trim than selected.

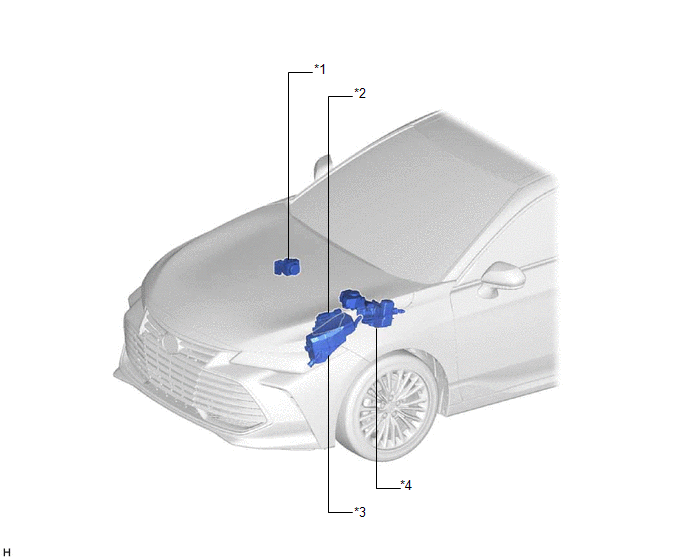

| *1 | PARKING BRAKE ECU (BRAKE ACTUATOR ASSEMBLY) | *2 | ECM |
| *3 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - EPB NO. 1 FUSE |
*4 | SKID CONTROL ECU ASSEMBLY (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY) |

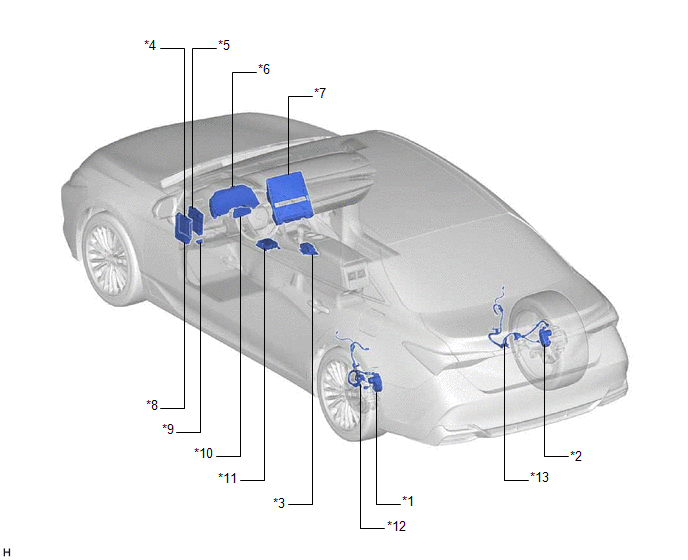

| *1 | PARKING BRAKE ACTUATOR ASSEMBLY LH | *2 | PARKING BRAKE ACTUATOR ASSEMBLY RH |
| *3 | ELECTRIC PARKING BRAKE SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY) | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | HYBRID VEHICLE CONTROL ECU | *6 | COMBINATION METER ASSEMBLY |
| *7 | RADIO RECEIVER ASSEMBLY | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 3 FUSE - ECU-B NO. 2 FUSE |
| *9 | DLC3 | *10 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *11 | DECELERATION SENSOR (AIRBAG ECU ASSEMBLY) | *12 | NO. 2 PARKING BRAKE WIRE ASSEMBLY |
| *13 | NO. 1 PARKING BRAKE WIRE ASSEMBLY | - | - |
