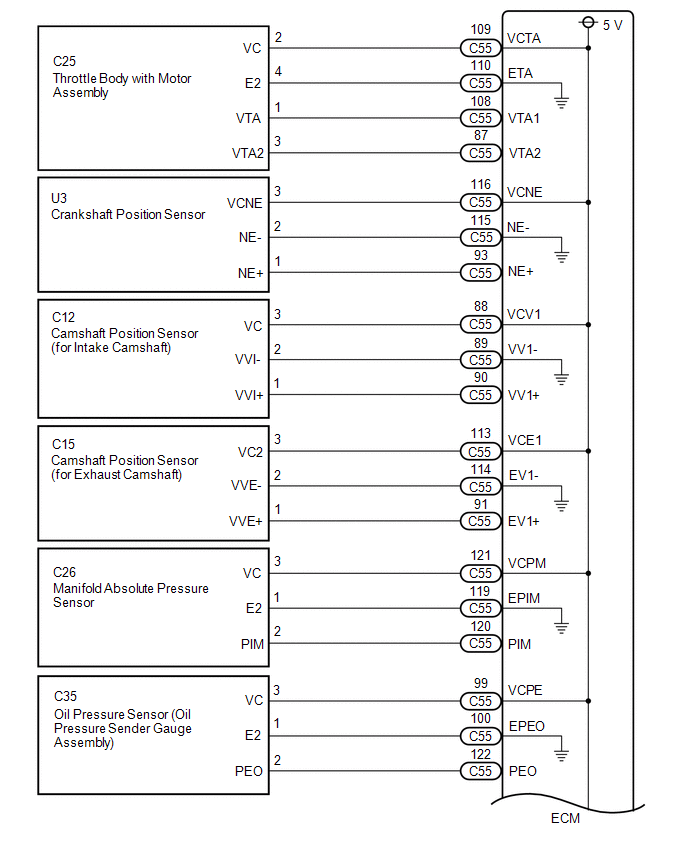

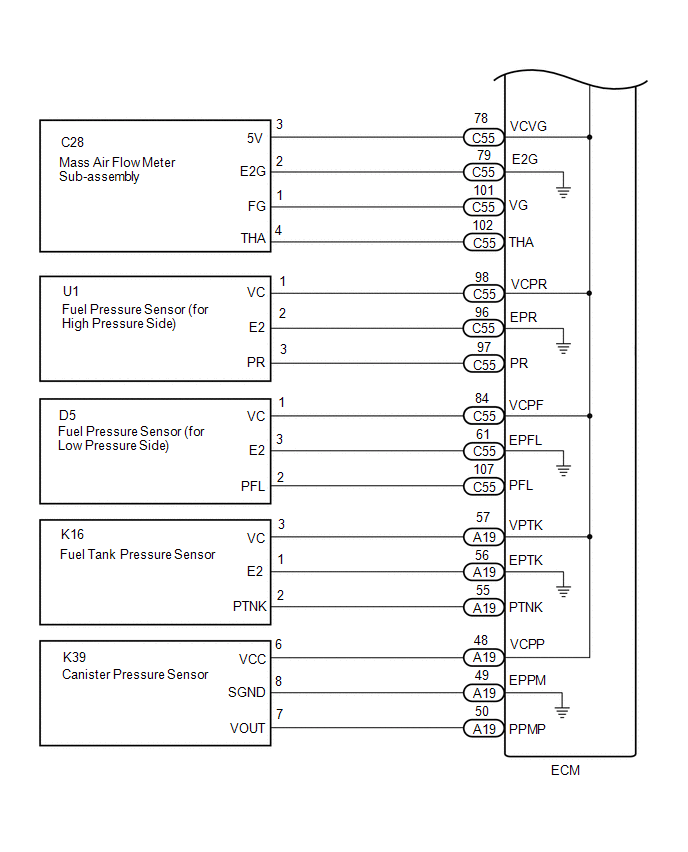

VC Output Circuit [04/2018 - 08/2019]: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
- For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Refer to WIRING DIAGRAM
- VC Output Circuit
