Section 66 (Navigation System - Symptom Tests (Hybrid))
>>
NAVIGATION SYSTEM (for HV Model)
>>
Symptom Tests
>>
USB Audio System Recognition/Play Error [08/2020 - ]
>>

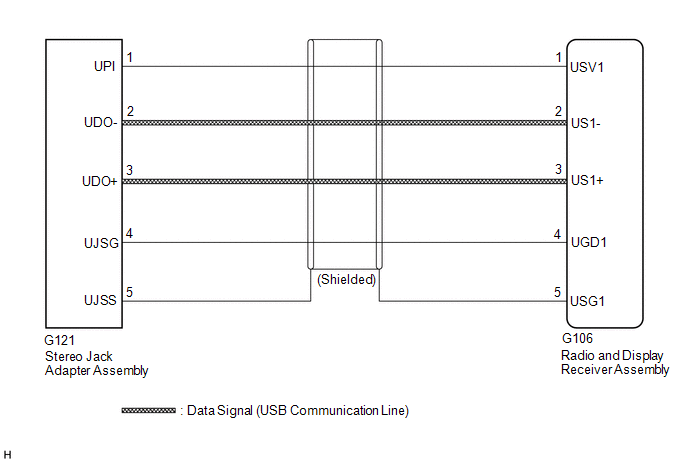

Wiring Diagram
USB Audio System Recognition/Play Error [08/2020 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
