Speaker Circuit [04/2018 - 08/2019]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

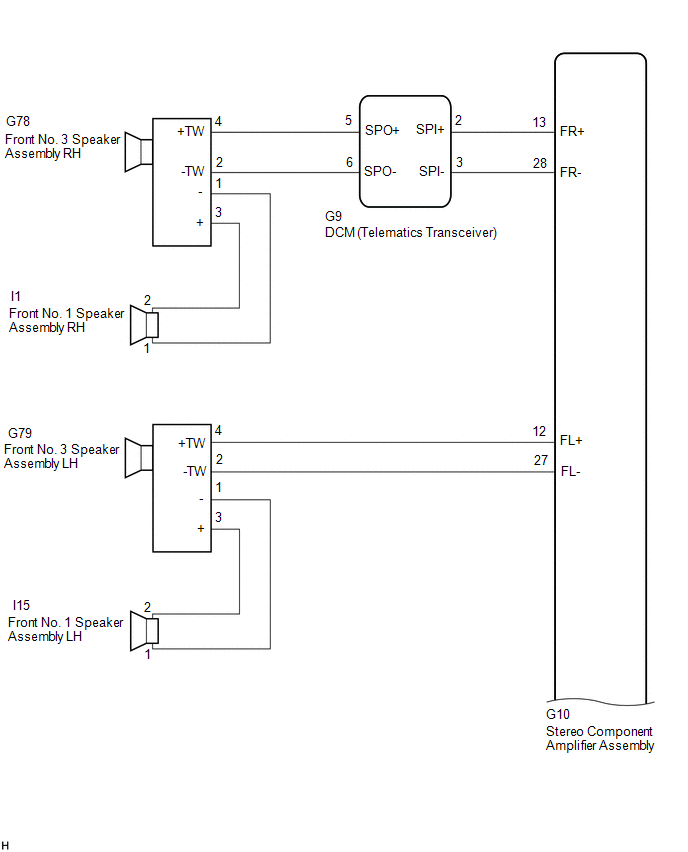

GTY937802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY860825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

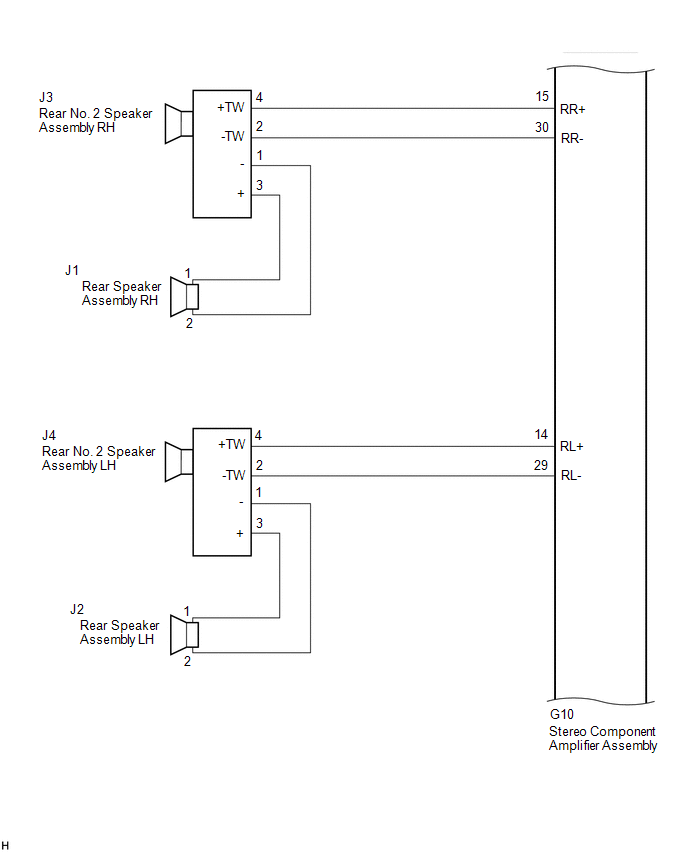

GTY839408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

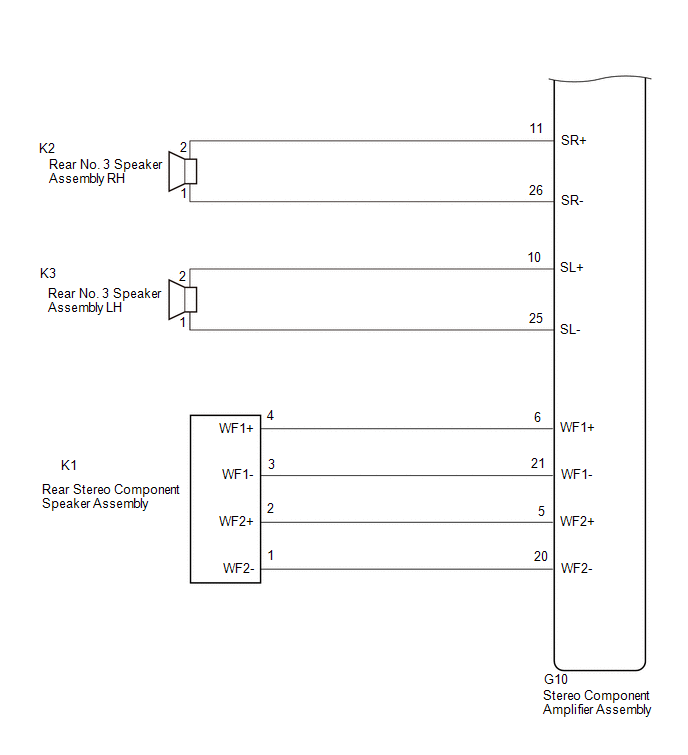

GTY867721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
