Microphone Circuit [08/2020 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

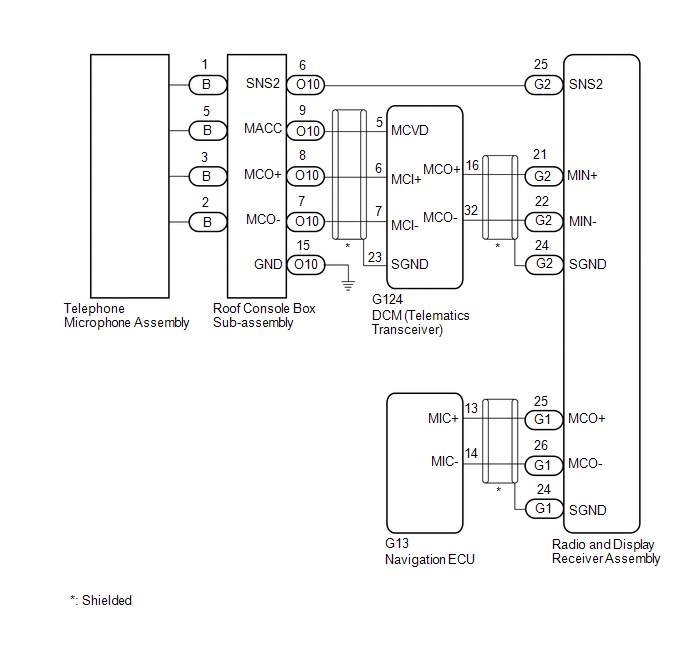

w/ Sliding Roof

GTY982320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

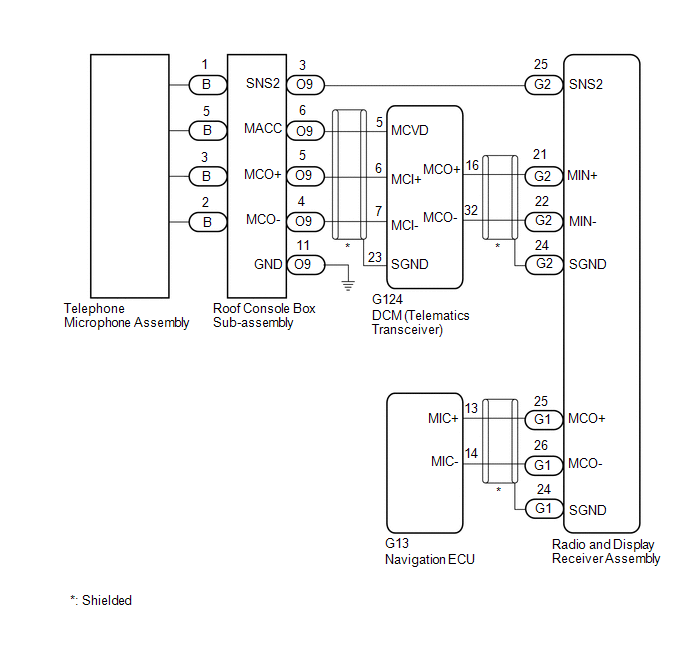

w/o Sliding Roof

GTY982424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
