Section 66 (Navigation System - Symptom Tests (Hybrid))
>>
NAVIGATION SYSTEM (for HV Model)
>>
Circuit Tests
>>
Microphone Circuit [04/2018 - 08/2020]
>>
Wiring Diagram

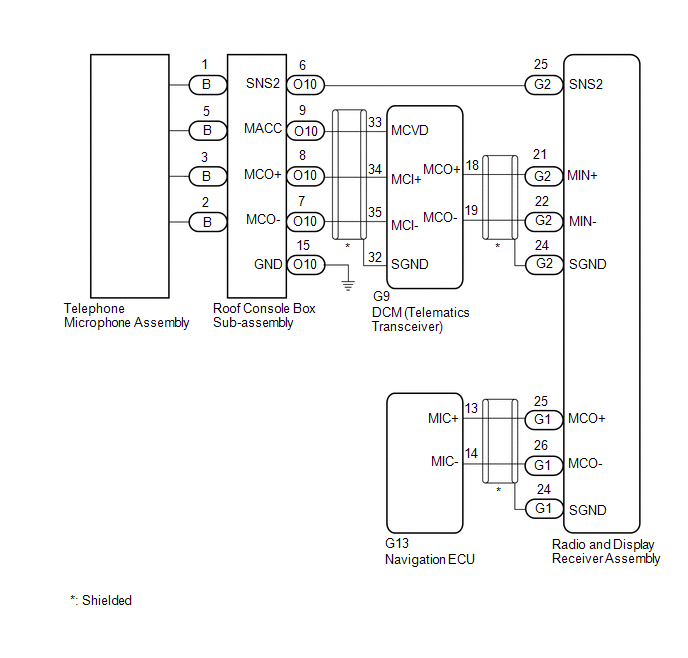

Microphone Circuit [04/2018 - 08/2020]: Wiring Diagram
