Data Signal Circuit between Radio Receiver and Stereo Jack Adapter [08/2020 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

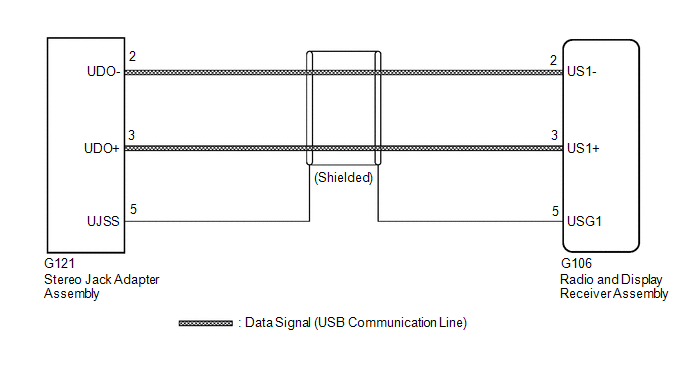

GTY988866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
