DTC C1686: Driver Side Camera Video Sync Signal Malfunction [04/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK FOR DTC
    1. Clear the DTCs.

      Chassis > Panoramic View Monitor > Clear DTCs

    2. Check for DTCs.

      Chassis > Panoramic View Monitor > Trouble Codes

      OK

      DTC C1686 is not output.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [04/2018 - ]

    Result:

    NG

    See step  2

  2. CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - OUTER REAR VIEW MIRROR ASSEMBLY LH)
    1. Disconnect the K36 parking assist ECU connector.
    2. Disconnect the I29 outer rear view mirror assembly LH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K36-12 (LCB+) - I29-14 (LCB+) Always Below 1 Ω
      K36-10 (LCV+) - I29-15 (LCV+) Always Below 1 Ω
      K36-11 (LCV-) - I29-16 (LCV-) Always Below 1 Ω
      K36-24 (LGND) - I29-17 (LGND) Always Below 1 Ω
      K36-23 (SGND) - I29-18 (SGND) Always Below 1 Ω
      K36-12 (LCB+) or I29-14 (LCB+) - Body ground Always 10 kΩ or higher
      K36-10 (LCV+) or I29-15 (LCV+) - Body ground Always 10 kΩ or higher
      K36-11 (LCV-) or I29-16 (LCV-) - Body ground Always 10 kΩ or higher
      K36-24 (LGND) or I29-17 (LGND) - Body ground Always 10 kΩ or higher
      K36-23 (SGND) or I29-18 (SGND) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. CHECK PARKING ASSIST ECU (LCV-, LGND)
    1. Disconnect the K36 parking assist ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY644742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Parking Assist ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      24 (LGND) - Body ground Always Below 1 Ω
      11 (LCV-) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE PARKING ASSIST ECU. Refer to  REMOVAL [04/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - ]

    Result:

    OK

    See step  4

  4. CHECK PARKING ASSIST ECU (LCB+, LGND)
    1. Remove the parking assist ECU with the connector still connected.
      GTY847705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Parking Assist ECU)
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K36-24 (LGND) - Body ground Always Below 1 Ω
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      K36-12 (LCB+) - K36-24 (LGND) Power switch on (ACC) 5.5 to 7.05 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE PARKING ASSIST ECU. Refer to  REMOVAL [04/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - ]

    Result:

    OK

    See step  5

  5. CHECK SIDE TELEVISION CAMERA ASSEMBLY LH (LCV+, LGND)
    1. Remove the parking assist ECU with the connector still connected.
    2. Using an oscilloscope, check the waveform of the side television camera assembly LH.

      HINT:

      A waterproof connector is used for the side television camera assembly LH. Therefore, inspect the waveform at the parking assist ECU with the connector connected.

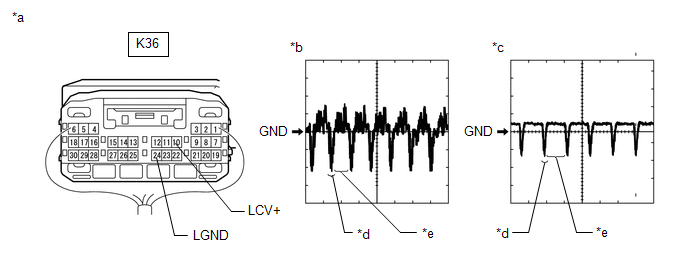

      GTY921726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Parking Assist ECU)      		 *b Waveform 1 (camera lens not covered, displaying an image)
      *c Waveform 2 (camera lens covered, blacking out the screen) *d Synchronization Signal
      *e Video Waveform - -

      HINT:

      • The video waveform changes according to the image sent by the side television camera assembly LH.
      • The video waveform is constantly output when the power switch is on (ACC).
      MEASUREMENT CONDITION

      Item Content
      Tester Connection K36-10 (LCV+) - K36-24 (LGND)
      Tool Setting 200 mV/DIV., 50 μsec./DIV.
      Condition Power switch on (IG), panoramic view monitor system operating

      OK

      Waveform is similar to that shown in illustration.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE PARKING ASSIST ECU. Refer to  REMOVAL [04/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - ]

    Result:

    NG

    See step  6

  6. REPLACE SIDE TELEVISION CAMERA ASSEMBLY LH
    1. Replace the side television camera assembly LH with a new or normally functioning one.

      Refer to REMOVAL [04/2018 - ]

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  7

  7. CHECK FOR DTC
    1. Clear the DTCs.

      Chassis > Panoramic View Monitor > Clear DTCs

    2. Check for DTCs.

      Chassis > Panoramic View Monitor > Trouble Codes

      OK

      DTC C1686 is not output.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    END (SIDE TELEVISION CAMERA ASSEMBLY LH IS DEFECTIVE)

    Result:

    NG

    REPLACE OUTER REAR VIEW MIRROR ASSEMBLY LH. Refer to  REMOVAL [04/2018 - ]
