Section 59 (Engine Lubrication System (Service Information) [A25A-FXS])
>>
Oil Pressure Switching Valve
>>
Components [04/2018 - ]
Components [04/2018 - ]
WARNING:
This page is about a different variant/trim than selected.

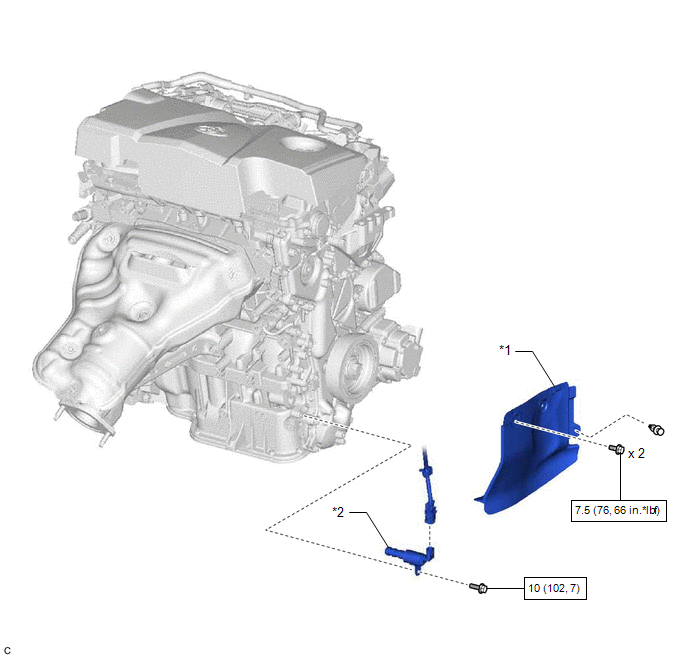

Fig 1: Oil Pressure Switching Valve Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
FRONT FENDER APRON SEAL RH
*2
OIL PRESSURE CONTROL VALVE ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque
-
-
