Components [08/2019 - ]
WARNING: This page is about a different variant/trim than selected.

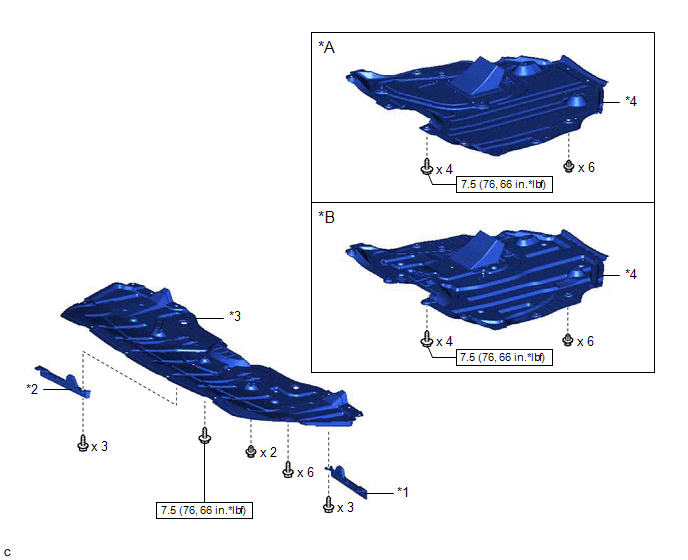

Fig 1: Oil Pressure And Temperature Sensor Replacement Components With Torque Specifications (1 Of 2)
| Callout | Description | Callout | Description |
| *A | Type A | *B | Type B |
| *1 | FRONT WHEEL OPENING EXTENSION PAD LH | *2 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

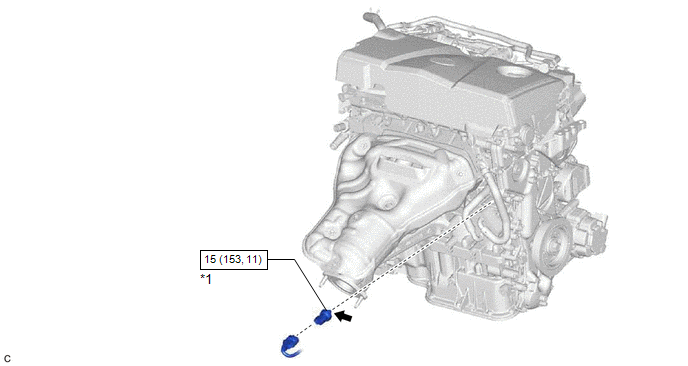

Fig 2: Oil Pressure And Temperature Sensor Replacement Components With Torque Specifications (2 Of 2)
| Callout | Description | Callout | Description |
| *1 | OIL PRESSURE AND TEMPERATURE SENSOR | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | Adhesive 1344 | ||
| * | Precoated part | - | - |
