Parts Location [04/2018 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

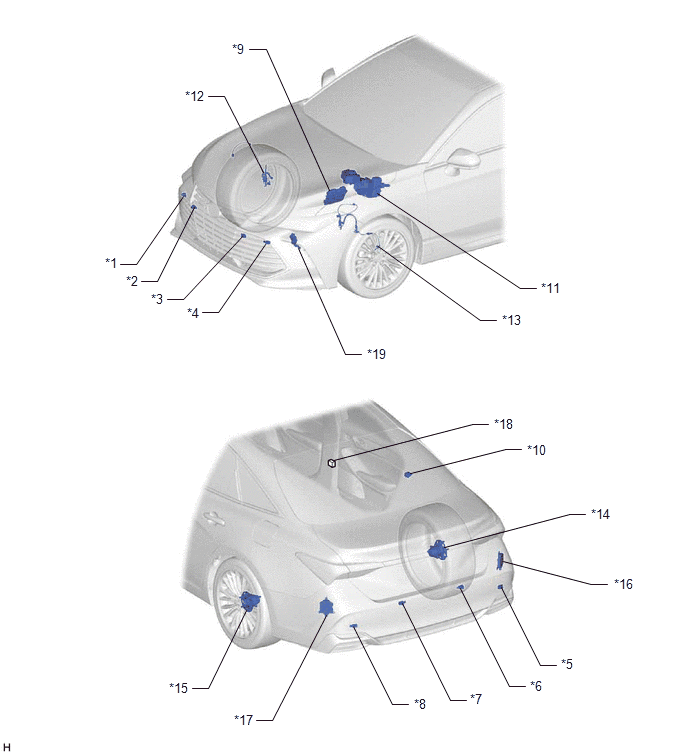

| *1 | FRONT CORNER ULTRASONIC SENSOR RH | *2 | FRONT CENTER ULTRASONIC SENSOR RH |
| *3 | FRONT CENTER ULTRASONIC SENSOR LH | *4 | FRONT CORNER ULTRASONIC SENSOR LH |
| *5 | REAR CORNER ULTRASONIC SENSOR RH | *6 | REAR CENTER ULTRASONIC SENSOR RH |
| *7 | REAR CENTER ULTRASONIC SENSOR LH | *8 | REAR CORNER ULTRASONIC SENSOR LH |
| *9 | ECM | *10 | NO. 2 CLEARANCE WARNING BUZZER |
| *11 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU |
*12 | FRONT SPEED SENSOR RH |
| *13 | FRONT SPEED SENSOR LH | *14 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR RH |
| *15 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR LH |
*16 | BLIND SPOT MONITOR SENSOR RH |
| *17 | BLIND SPOT MONITOR SENSOR LH | *18 | NO. 26 JUNCTION CONNECTOR |
| *19 | SHIFT LEVER POSITION SENSOR | - | - |

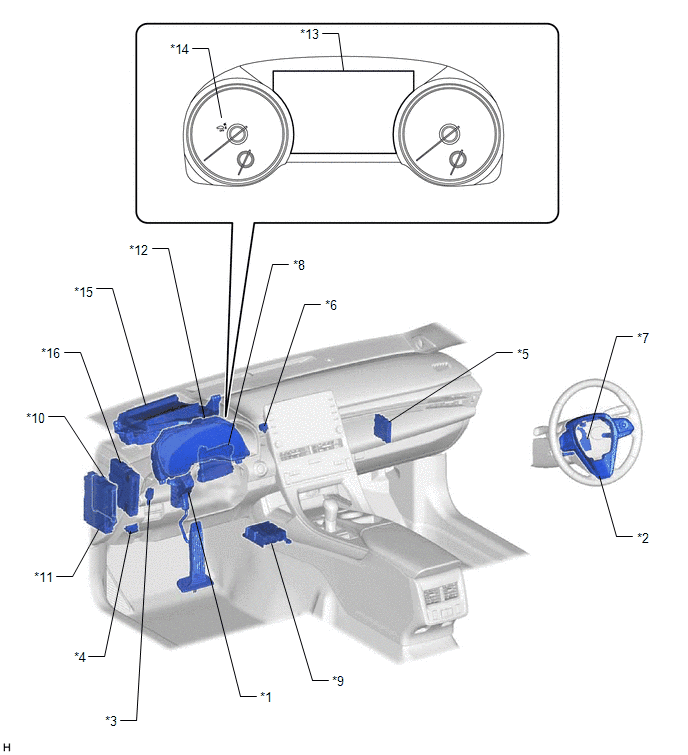

| *1 | ACCELERATOR PEDAL SENSOR | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | STOP LIGHT SWITCH ASSEMBLY | *4 | DLC3 |
| *5 | CLEARANCE WARNING ECU ASSEMBLY | *6 | NO. 1 CLEARANCE WARNING BUZZER |
| *7 | STEERING SENSOR | *8 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *9 | AIRBAG ECU ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
*10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 1 FUSE - ECU-DCC NO. 1 FUSE - ECU-IG1 NO. 2 FUSE |
*12 | COMBINATION METER ASSEMBLY |
| *13 | MULTI-INFORMATION DISPLAY | *14 | ICS OFF INDICATOR |
| *15 | HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY) (w/ Headup Display System) | *16 | HYBRID VEHICLE CONTROL ECU |
