Removal [04/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

SECURE VEHICLE

Fully apply the parking brake and chock a wheel.

WARNING:

Make sure to apply the parking brake and chock a wheel before performing this procedure.
If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE SHIFT LOCK RELEASE BUTTON COVER

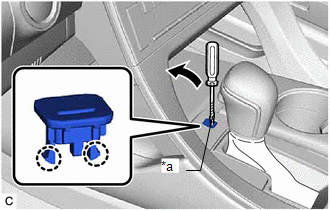

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the shift lock release button cover from the rear upper console panel sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape

NOTE:

Be careful not to damage the shift lock release button cover and rear upper console panel sub-assembly.

REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
See step 1
REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [04/2018 - 08/2020] , or refer to REMOVAL [08/2020 - ]

DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

Move the shift lever to N.

Disconnect the transmission control cable assembly from the transmission floor shift assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

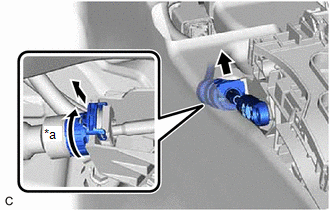

Rotate the lock nut counterclockwise approximately 180° and, while holding the lock nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Counterclockwise

REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY

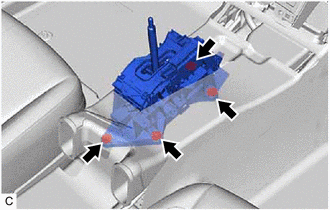

Remove the 4 bolts.

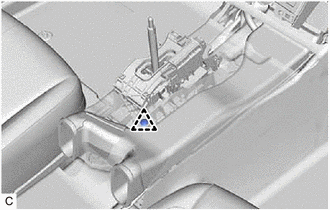

Remove the clip to disconnect the No. 1 console box duct from the transmission floor shift assembly.

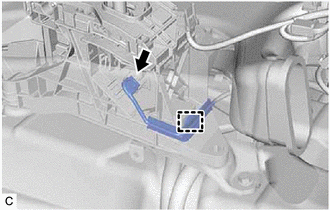

Disconnect the transmission control switch connector.

Disengage the clamp to disconnect the wire harness from the transmission floor shift assembly.

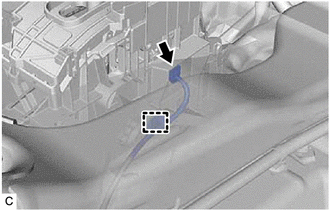

Disconnect the shift lock control ECU connector.

Disengage the clamp to disconnect the wire harness from the transmission floor shift assembly.
Remove the transmission floor shift assembly.
