Installation [04/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL NO. 1 MOTOR COOLING HOSE

    HINT:

    Perform this procedure only when replacement of the motor cooling cooler is necessary.

    1. Coat the pipe of the motor cooling cooler with a small amount of ATF as shown in the illustration.
      GTY764374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      ATF Application Area
    2. Install the No. 1 motor cooling hose to the motor cooling cooler, and slide the clip to secure it.
      GTY763093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 0 to 3 mm (0 to 0.118 in.)
      *b 2 to 7 mm (0.0787 to 0.276 in.)
      *c Paint Mark
      *d Center of Paint Mark
      *e 120°
      Claw of Clip Location
      NOTE:
      • Be careful not to deform the motor cooling cooler.
      • Make sure to align the paint mark of the No. 1 motor cooling hose with the paint mark of the motor cooling cooler.
      • Make sure that the claws of the clip are positioned within the area shown in the illustration.
  2. INSTALL NO. 2 MOTOR COOLING HOSE

    HINT:

    Perform this procedure only when replacement of the motor cooling cooler is necessary.

    1. Coat the pipe of the motor cooling cooler with a small amount of ATF as shown in the illustration.
      GTY774609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      ATF Application Area
    2. Install the No. 2 motor cooling hose to the motor cooling cooler, and slide the clip to secure it.
      GTY746183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 0 to 3 mm (0 to 0.118 in.)
      *b 2 to 7 mm (0.0787 to 0.276 in.)
      *c Paint Mark
      *d Center of Paint Mark
      *e 120°
      Claw of Clip Location
      NOTE:
      • Be careful not to deform the motor cooling cooler.
      • Make sure to align the paint mark of the No. 2 motor cooling hose with the paint mark of the motor cooling cooler.
      • Make sure that the claws of the clip are positioned within the area shown in the illustration.
  3. INSTALL NO. 2 MOTOR COOLING PIPE
    1. Install the No. 2 motor cooling pipe to the No. 2 motor cooling hose, and slide the clip to secure it.
      GTY743909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 0 to 3 mm (0 to 0.118 in.)
      *b 2 to 7 mm (0.0787 to 0.276 in.)
      *c Paint Mark
      *d Center of Paint Mark
      *e 15°
      Center of Clip Location
      NOTE:
      • Make sure to align the paint mark of the No. 2 motor cooling pipe with the paint mark of the No. 2 motor cooling hose.
      • Make sure that the center of the clip (between the claws of the clip) is within 15° of the center of the paint mark as shown in the illustration.
  4. INSTALL MOTOR COOLING COOLER

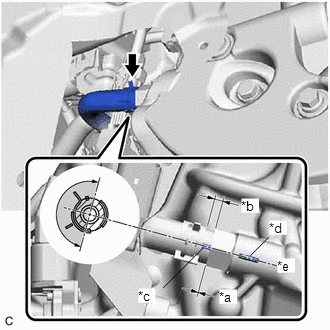

    1. Connect the No. 1 motor cooling hose to the transaxle housing tube connector, and slide the clip to secure it.
      GTY934077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 0 to 3 mm (0 to 0.118 in.)
      *b 2 to 7 mm (0.0787 to 0.276 in.)
      *c Paint Mark
      *d Rib
      *e Center of Rib
      *f 180°
      Claw of Clip Location
      NOTE:
      • Make sure to align the paint mark of the No. 1 motor cooling hose with the rib of the hybrid vehicle transaxle assembly.
      • Make sure that the claws of the clip are within the location shown in the illustration.
    2. Temporarily install the motor cooling cooler to the No. 1 transmission control cable bracket with the 3 bolts.
      Fig 1: Motor Cooling Cooler Bolts With Tightening Sequence
      GTY772288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tighten the 3 bolts in the order shown in the illustration.

      Torque: 11.5 N*m (117 kgf*cm, 8 ft.*lbf)

    4. Temporarily install the No. 2 motor cooling pipe to the hybrid vehicle transaxle assembly with the oil cooler union bolt and a new gasket.
      GTY748586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Oil Cooler Union Bolt
      *2 Gasket
    5. Install the No. 2 motor cooling pipe to the hose bracket with the bolt and No. 1 oil cooler tube clamp.
      GTY757366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 11.5 N*m (117 kgf*cm, 8 ft.*lbf)

    6. Tighten the oil cooler union bolt.
      GTY757367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

  5. CONNECT NO. 5 INVERTER COOLING HOSE

    Refer to PROCEDURE - Step 25

  6. INSTALL NO. 1 INVERTER COOLING HOSE
    1. Install the No. 1 inverter cooling hose to the motor cooling cooler, and slide the clip to secure it.
      GTY750753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 2 to 7 mm (0.0787 to 0.276 in.)
      *b Paint Mark
      *c Center of Paint Mark
      *d 120°
      Claw of Clip Location
      NOTE:
      • Be careful not to deform the motor cooling cooler.
      • Make sure to align the paint mark of the No. 1 inverter cooling hose with the paint mark of the motor cooling cooler.
      • Make sure that the claws of the clip are positioned within the area shown in the illustration.
  7. INSTALL INVERTER WITH CONVERTER ASSEMBLY

    Refer to INSTALLATION [04/2018 - ]

  8. INSPECT HYBRID TRANSAXLE FLUID

    See step  5

  9. INSPECT FOR HYBRID TRANSAXLE FLUID LEAK
  10. INSTALL FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 39

  11. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 41

  12. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 42

  13. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 43

  14. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 44
