Section 44 (Hybrid Transmission (Service Information) [P710])
>>
Hybrid Transaxle Oil Seal
>>
Components [04/2018 - ]
Components [04/2018 - ]
WARNING:
This page is about a different variant/trim than selected.

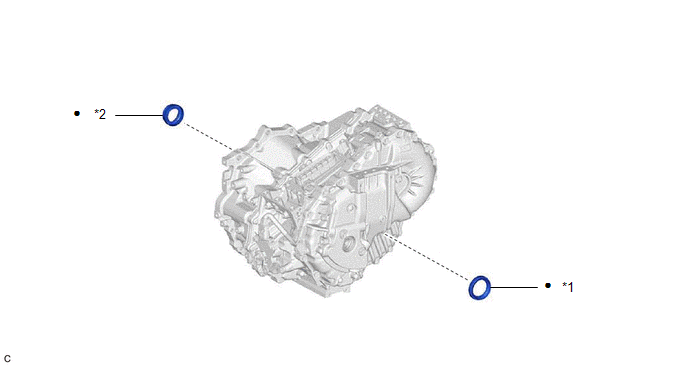

Fig 1: Hybrid Transaxle Oil Seal Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FRONT DRIVE SHAFT OIL SEAL LH
*2
FRONT DRIVE SHAFT OIL SEAL RH
•
Non-reusable part
-
-
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
