Components [08/2019 - ]
WARNING: This page is about a different variant/trim than selected.

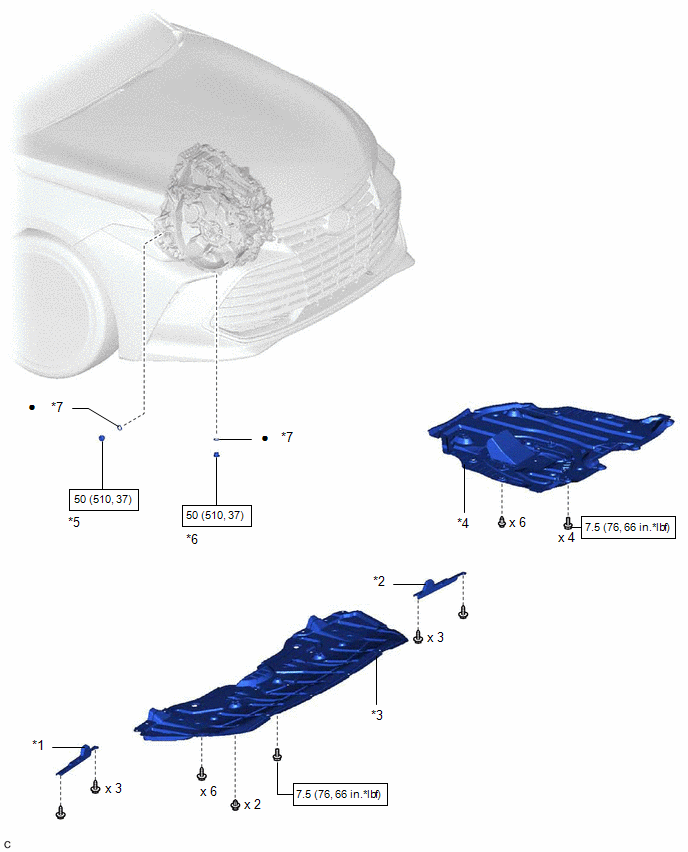

| Callout | Description | Callout | Description |
| *1 | FRONT WHEEL OPENING EXTENSION PAD RH | *2 | FRONT WHEEL OPENING EXTENSION PAD LH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| *5 | FILLER PLUG | *6 | DRAIN PLUG |
| *7 | GASKET | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
