Components [04/2018 - ]

WARNING: This page is about a different variant/trim than selected.

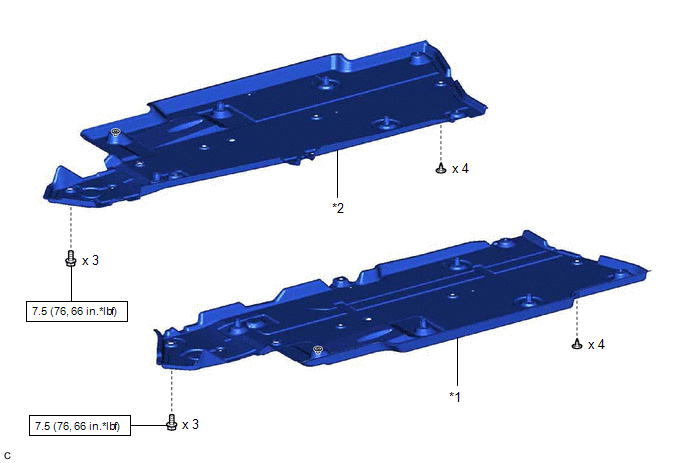

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT FLOOR COVER LH	*2	FRONT FLOOR COVER RH
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Fig 2: Exhaust Pipe Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CENTER FLOOR CROSSMEMBER BRACE	*2	FRONT CENTER FLOOR BRACE
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Fig 3: Exhaust Pipe Replacement Components With Torque Specifications (3 Of 4)

Callout	Description	Callout	Description
*1	FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)	*2	CENTER EXHAUST PIPE ASSEMBLY
*3	EXHAUST PIPE SUPPORT	*4	GASKET
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part

Fig 4: Exhaust Pipe Replacement Components (4 Of 4)

TAIL EXHAUST PIPE ASSEMBLY LH

EXHAUST PIPE SUPPORT
