Components [04/2018 - ]
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |

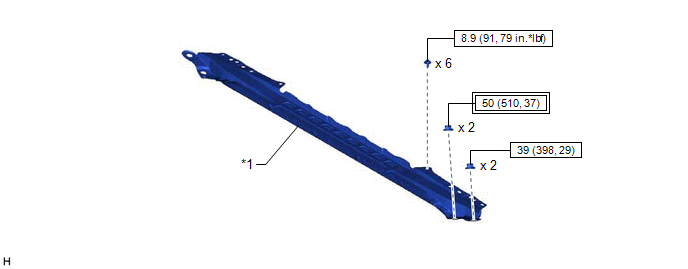

FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

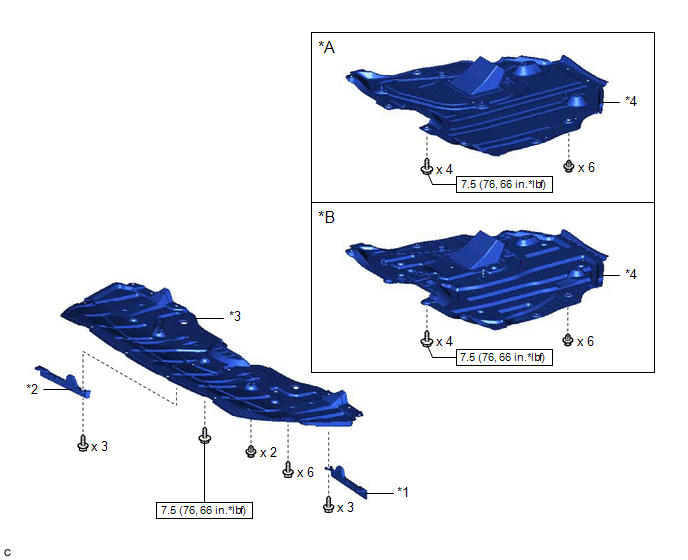

| *A |
Type A |
*B |
Type B |
| *1 |
FRONT WHEEL OPENING EXTENSION PAD LH |
*2 |
FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 |
NO. 1 ENGINE UNDER COVER |
*4 |
NO. 2 ENGINE UNDER COVER ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |

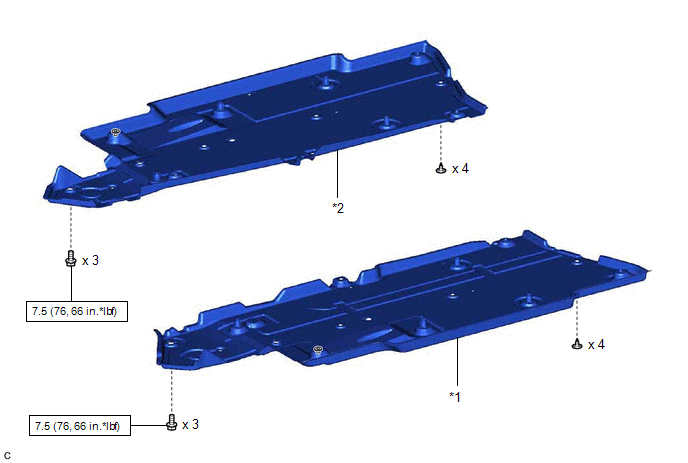

FRONT FLOOR COVER LH |
*2 |
FRONT FLOOR COVER RH |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) |
*2 |
NO. 1 UPPER FRONT FLOOR HEAT INSULATOR |
| *3 |
FRONT LOWER NO. 1 FLOOR HEAT INSULATOR |
*4 |
CENTER FLOOR CROSSMEMBER BRACE |
| *5 |
FRONT CENTER FLOOR BRACE |
*6 |
EXHAUST PIPE SUPPORT |
| *7 |
GASKET |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
* |
For use with a union nut wrench |
| • |
Non-reusable part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
EXHAUST MANIFOLD (TWC: Front Catalyst) |
*2 |
MANIFOLD STAY |
| *3 |
NO. 1 EXHAUST MANIFOLD HEAT INSULATOR |
*4 |
NO. 2 EXHAUST MANIFOLD HEAT INSULATOR |
| *5 |
EXHAUST MANIFOLD TO HEAD GASKET |
*6 |
WIRE HARNESS CLAMP BRACKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
* |
For use with a union nut wrench |
| • |
Non-reusable part |
- |
- |
