Section 39 (Emission Control System (Service Information) [A25A-FXS])
>>
Purge Valve
>>
Components [04/2018 -]
Components [04/2018 -]
WARNING:
This page is about a different variant/trim than selected.

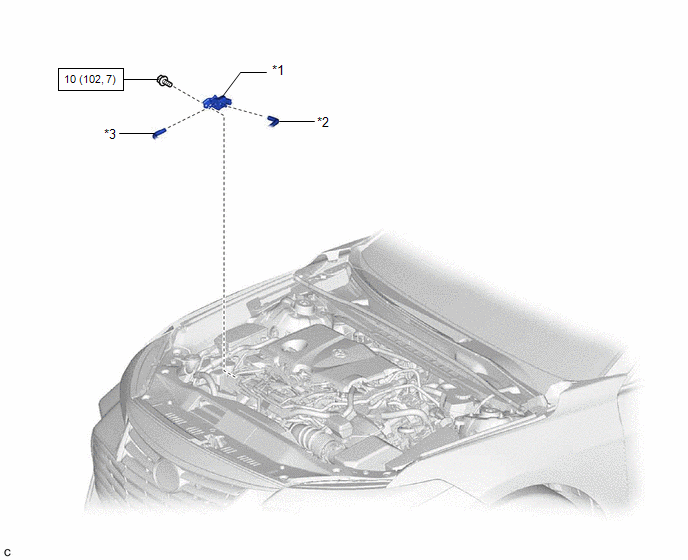

Fig 1: Purge Valve Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
PURGE VALVE (PURGE VSV)
*2
NO. 1 FUEL VAPOR FEED HOSE
*3
NO. 2 FUEL VAPOR FEED HOSE
-
-
N*m (kgf*cm, ft.*lbf): Specified torque
-
-
