Installation [04/2018 -]: Procedure

HINT:

Only perform this procedure when replacement of the charcoal canister charcoal canister leak detection pump sub-assembly is necessary.

1. Engage the 2 claws to install a new charcoal canister leak detection pump sub-assembly to the charcoal canister sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Do not allow foreign matter such as grease, oil or water to adhere to the O-ring.
   • Ensure that the claws are engaged properly.

1. Install the clip to the vehicle body.
2. Engage the claw to install the canister (charcoal canister assembly) to the vehicle body as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Engage the clip to connect the canister (charcoal canister assembly).
4. Install the 2 bolts.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

5. Connect the purge line hose to the canister (charcoal canister assembly) and slide the clip to secure it.
6. Push the fuel tank vent hose onto the canister (charcoal canister assembly) and push in the retainer to engage the lock claws.
   NOTE:

   • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (canister (charcoal canister assembly)) before performing this work.
   • After connecting the fuel tank vent hose, check that the fuel tank vent hose is securely connected by pulling on the tube connector.

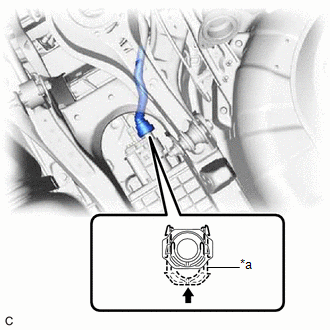

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Retainer
   	Push in

7. Connect the charcoal canister leak detection pump sub-assembly connector.
8. Push in the fuel tank vent hose sub-assembly onto the charcoal canister leak detection pump sub-assembly and push in the retainer to engage the lock claws.
   NOTE:

   • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (charcoal canister leak detection pump sub-assembly) before performing this work.
   • After connecting the fuel tank vent hose sub-assembly, check that the fuel tank vent hose sub-assembly is securely connected by pulling on the tube connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Retainer
   	Push in

1. Install the rear stabilizer bar with the rear No. 1 stabilizer bar bracket LH, rear No. 1 stabilizer bar bracket RH and 4 bolts.

   Torque: 78 N*m (795 kgf*cm, 58 ft.*lbf)
