Components [04/2018 - 08/2019]

WARNING: This page is about a different variant/trim than selected.

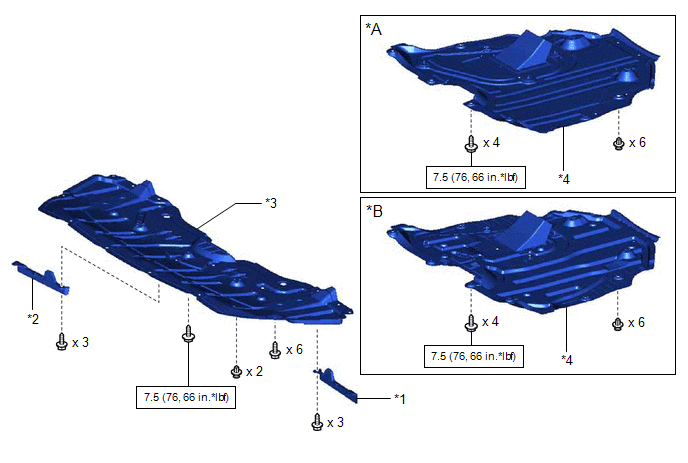

Fig 1: Engine Oil Temperature Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	Type A	*B	Type B
*1	FRONT WHEEL OPENING EXTENSION PAD LH	*2	FRONT WHEEL OPENING EXTENSION PAD RH
*3	NO. 1 ENGINE UNDER COVER	*4	NO. 2 ENGINE UNDER COVER ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Fig 2: Engine Oil Temperature Sensor Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	ENGINE OIL TEMPERATURE SENSOR	*2	GASKET
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
