Components [04/2018 - ]

WARNING: This page is about a different variant/trim than selected.

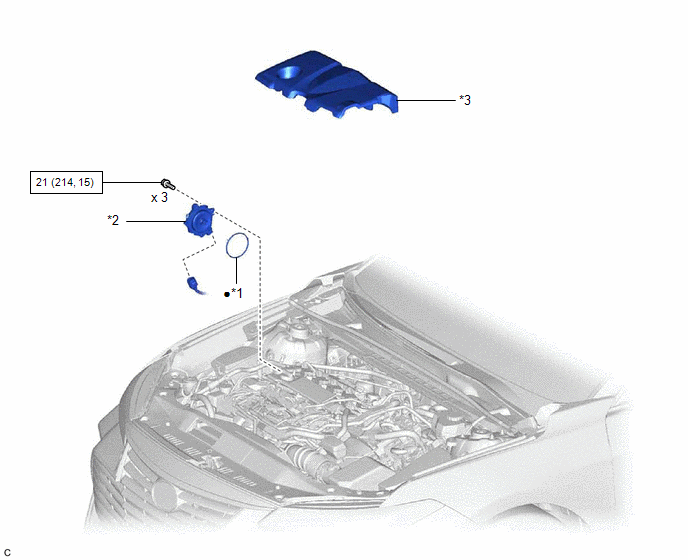

Fig 1: Camshaft Timing Control Motor Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

LUGGAGE TRIM SERVICE HOLE COVER

Fig 2: Camshaft Timing Control Motor Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	CAM TIMING CONTROL MOTOR O-RING	*2	CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY
*3	NO. 1 ENGINE COVER SUB-ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
