Components [04/2018 - ]
WARNING: This page is about a different variant/trim than selected.

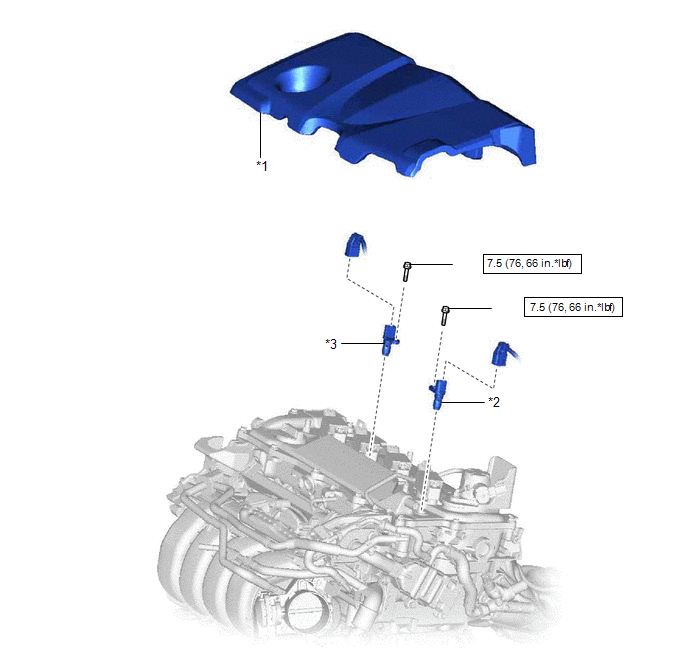

| Callout | Description | Callout | Description |
| *1 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *2 | CAMSHAFT POSITION SENSOR (for Intake Side) |
| *3 | CAMSHAFT POSITION SENSOR (for Exhaust Side) | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |
