Parts Location [04/2018 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

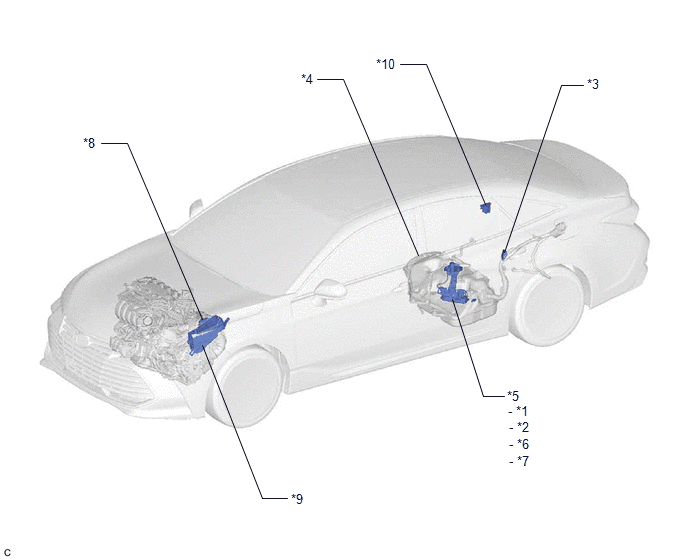

*1	FUEL SENDER GAUGE ASSEMBLY	*2	FUEL PUMP (for Low Pressure)
*3	FUEL PUMP CONTROL ECU	*4	FUEL TANK ASSEMBLY
*5	FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY	*6	FUEL MAIN VALVE ASSEMBLY
*7	FUEL FILTER	*8	ECM
*9	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - EFI-MAIN NO. 2 RELAY - EFI-MAIN NO. 2 FUSE - INJ FUSE	*10	FUSIBLE LINK BLOCK ASSEMBLY - MAIN FUSE

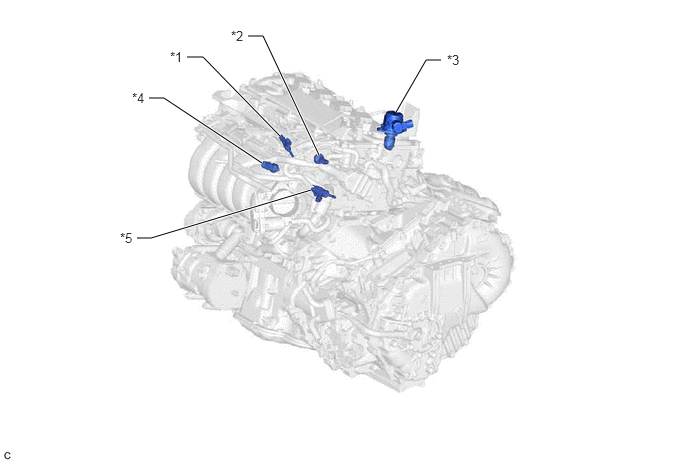

*1	PORT FUEL INJECTOR ASSEMBLY	*2	NO. 2 FUEL PRESSURE SENSOR (for Low Pressure)
*3	FUEL PUMP ASSEMBLY (for High Pressure)	*4	FUEL PRESSURE SENSOR (for High Pressure)
*5	DIRECT FUEL INJECTOR ASSEMBLY	-	-
