Components [04/2018 - ]
WARNING: This page is about a different variant/trim than selected.

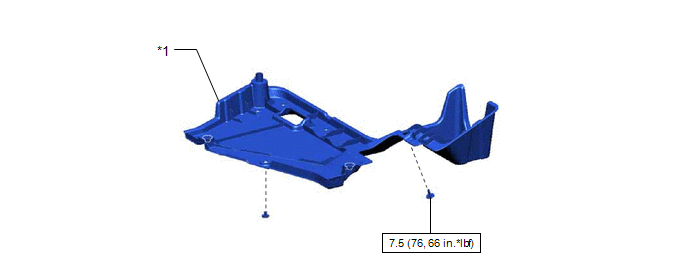

| Callout | Description | Callout | Description |
| *1 | NO. 2 FLOOR UNDER COVER | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

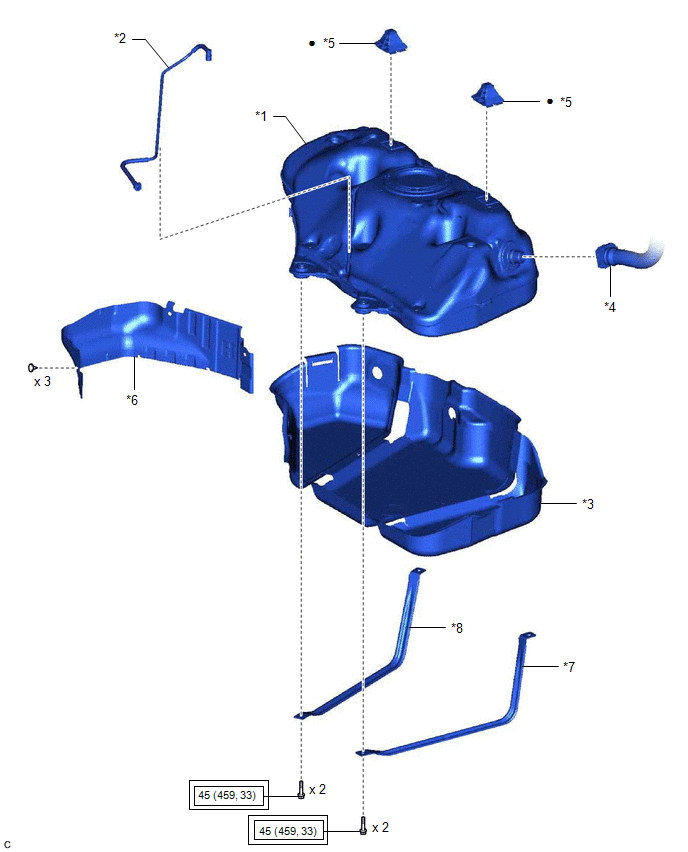

| Callout | Description | Callout | Description |
| *1 | FUEL TANK ASSEMBLY | *2 | FUEL TANK MAIN TUBE SUB-ASSEMBLY |
| *3 | NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY | *4 | FUEL TANK TO FILLER PIPE HOSE |
| *5 | NO. 1 FUEL TANK CUSHION | *6 | NO. 1 FUEL TANK PROTECTOR |
| *7 | NO. 1 FUEL TANK BAND SUB-ASSEMBLY LH | *8 | NO. 1 FUEL TANK BAND SUB-ASSEMBLY RH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |
