Installation [04/2018 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- INSTALL NO. 2 FUEL TANK FILLER PIPE PROTECTOR

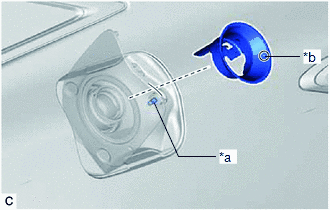

- While aligning the matchmark of the No. 2 fuel tank filler pipe protector with the shaft of the fuel lid lock with motor assembly, install the No. 2 fuel tank filler pipe protector.
*a Shaft *b Matchmark - Return the rear wheel house liner LH to its original position and install the screws and clips.
- Install the fuel tank cap assembly.
- While aligning the matchmark of the No. 2 fuel tank filler pipe protector with the shaft of the fuel lid lock with motor assembly, install the No. 2 fuel tank filler pipe protector.
- INSTALL REAR WHEEL LH
Refer to PROCEDURE - Step 1
