System Diagram [08/2019 - 08/2020]

WARNING: This page is about a different variant/trim than selected.

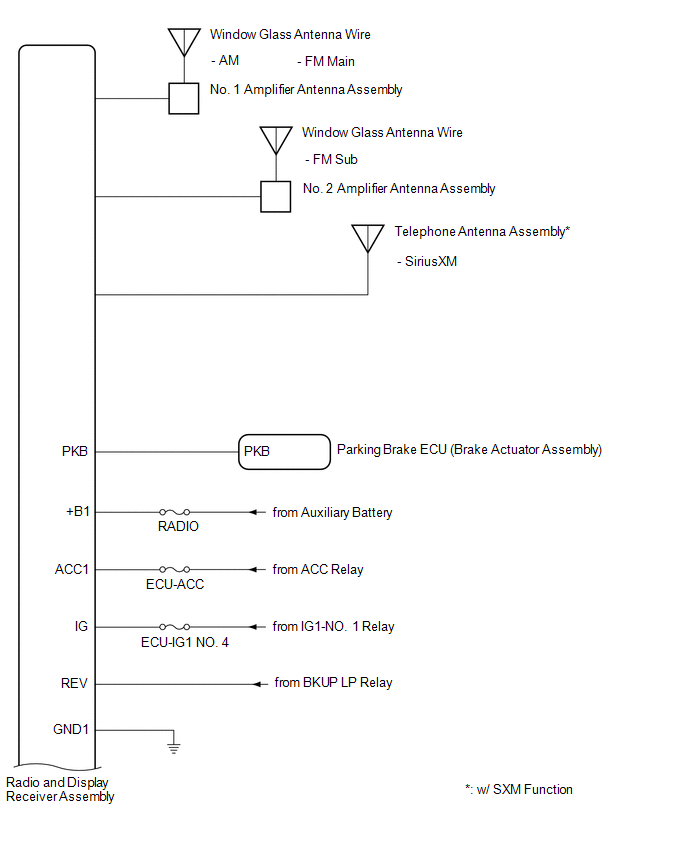

GTY884897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

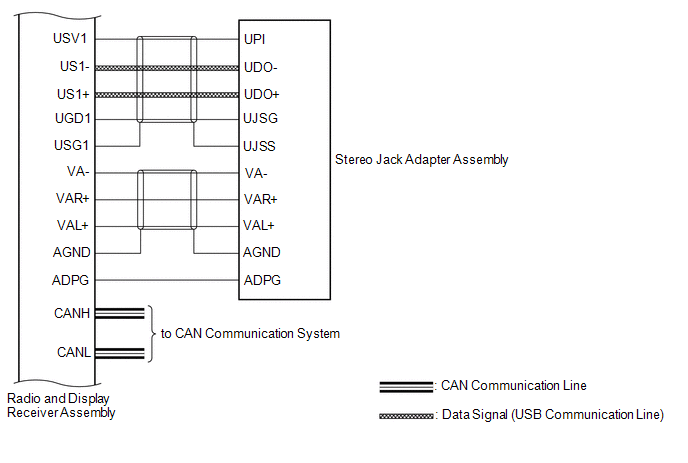

GTY906055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

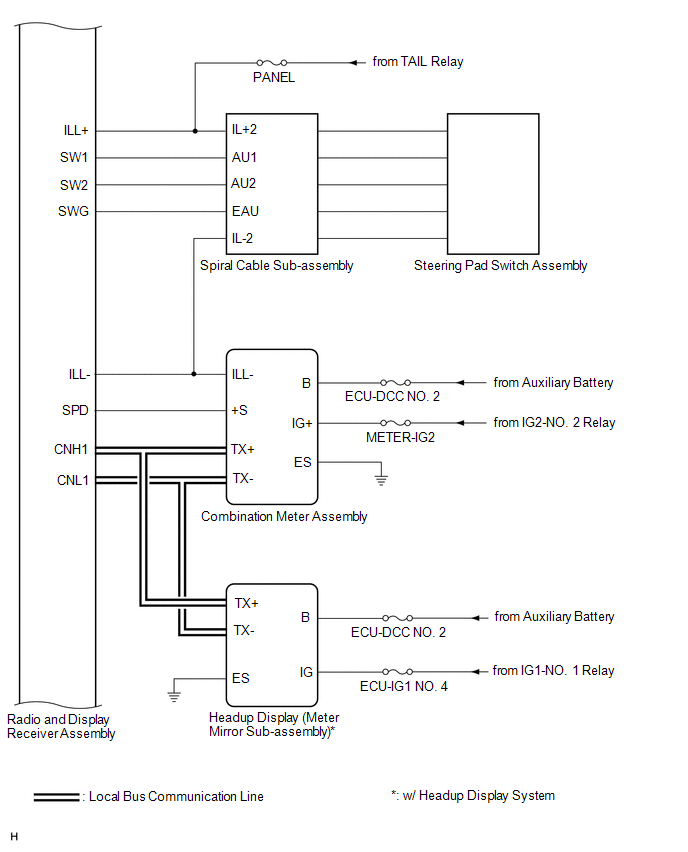

GTY942117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

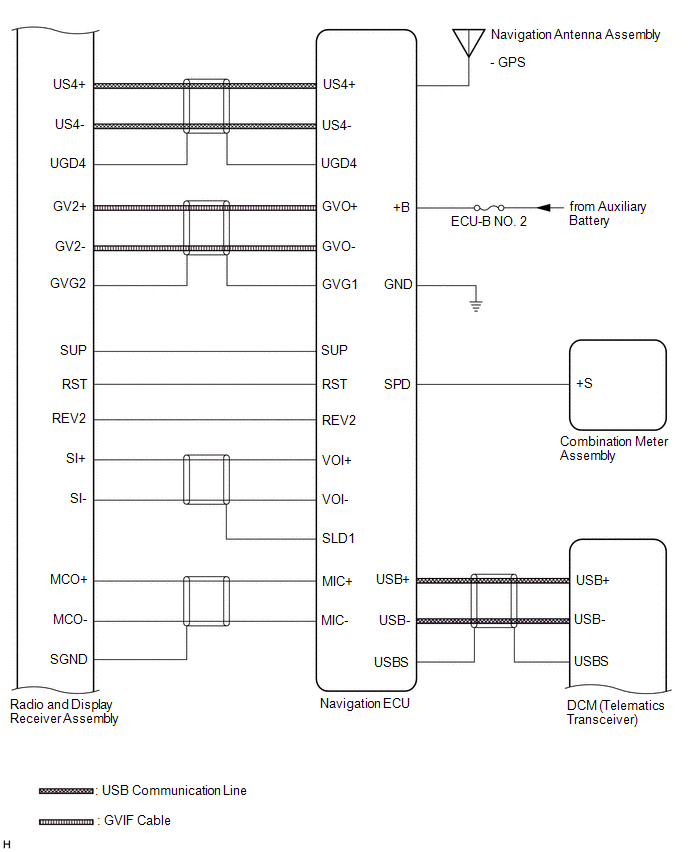

GTY904829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

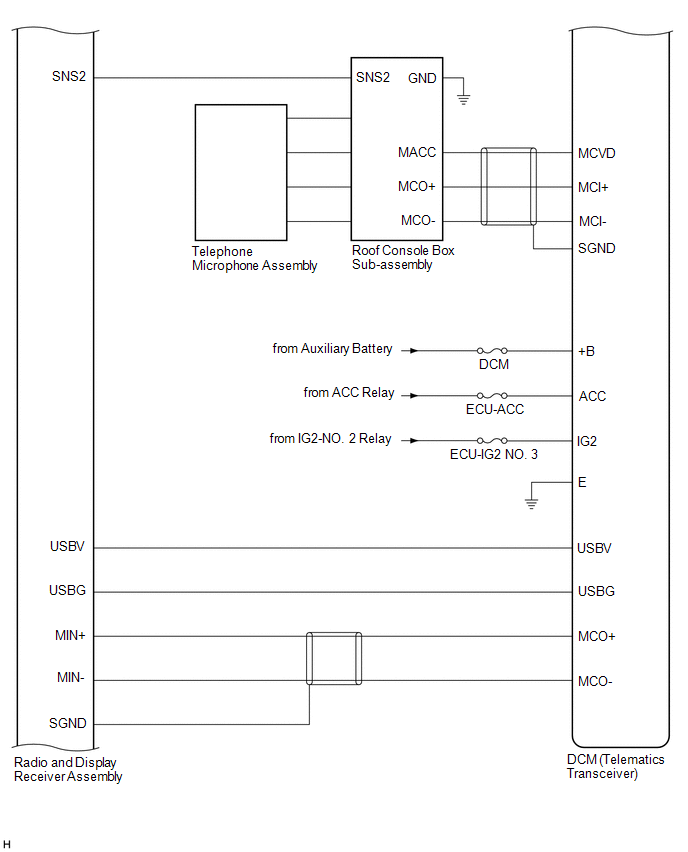

GTY874704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

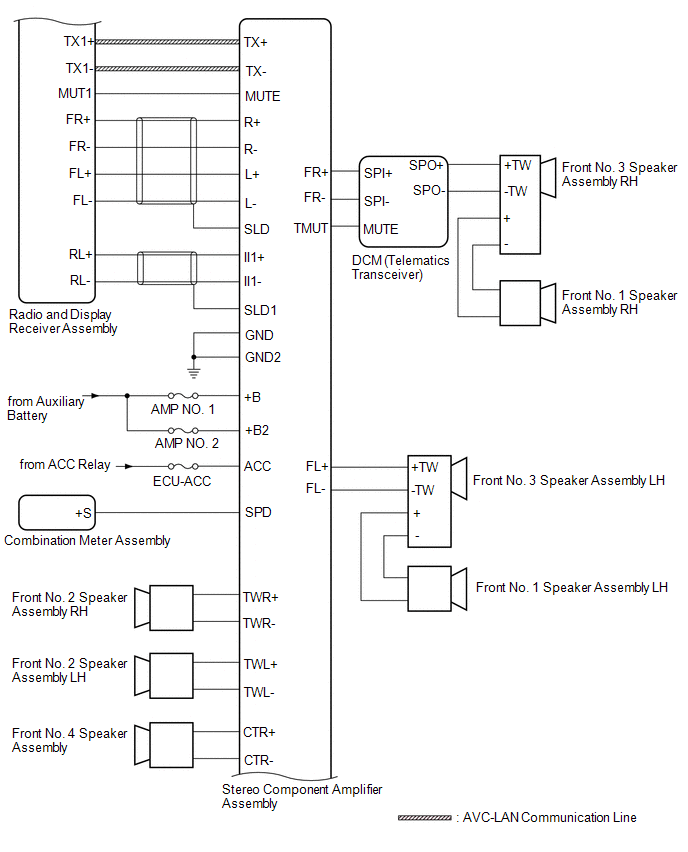

GTY895665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

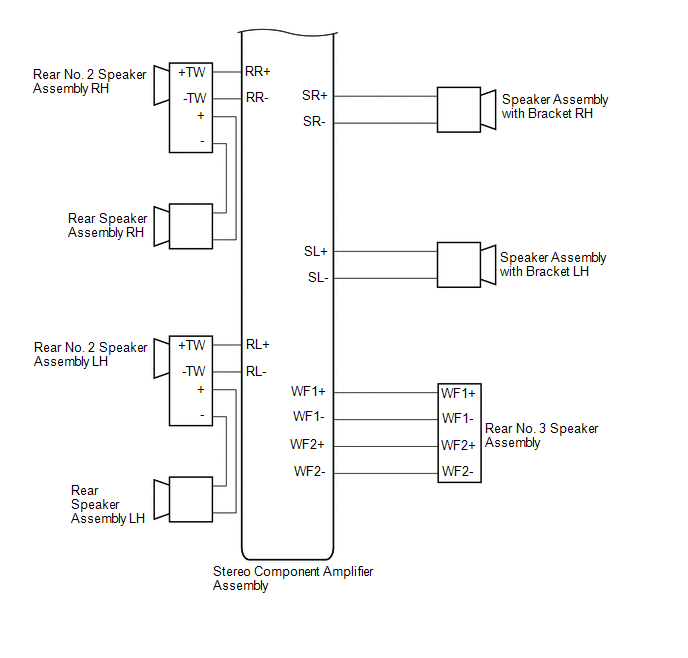

GTY935495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
