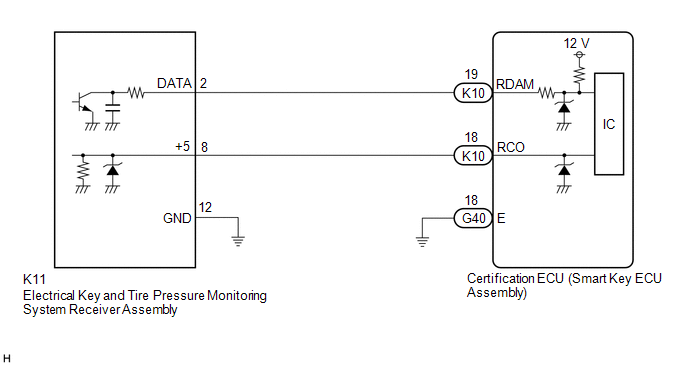

DTC B1242: Wireless Door Lock Tuner Circuit Malfunction [04/2018 -]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY945462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
