Parts Location [04/2018 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

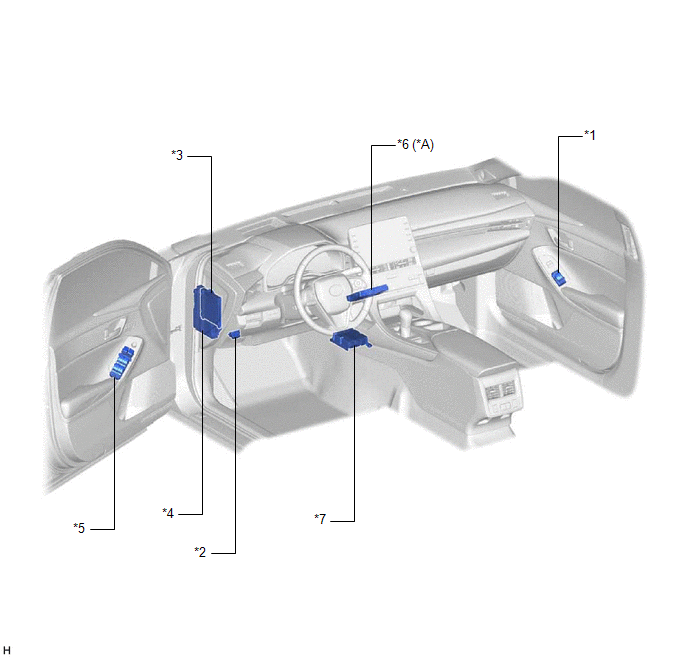

| *A | for Toyota Entune Remote Connect Compatible Type | - | - |
| *1 | DOOR CONTROL SWITCH ASSEMBLY | *2 | DLC3 |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 4 FUSE - ECU-ACC FUSE - ECU-DCC NO. 2 FUSE - ALL DR LOCK RELAY - L/D-DR UNLOCK RELAY - D-DR UNLOCK RELAY |
| *5 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY - DOOR CONTROL SWITCH |
*6 | DCM (TELEMATICS TRANSCEIVER) |
| *7 | AIRBAG ECU ASSEMBLY | - | - |

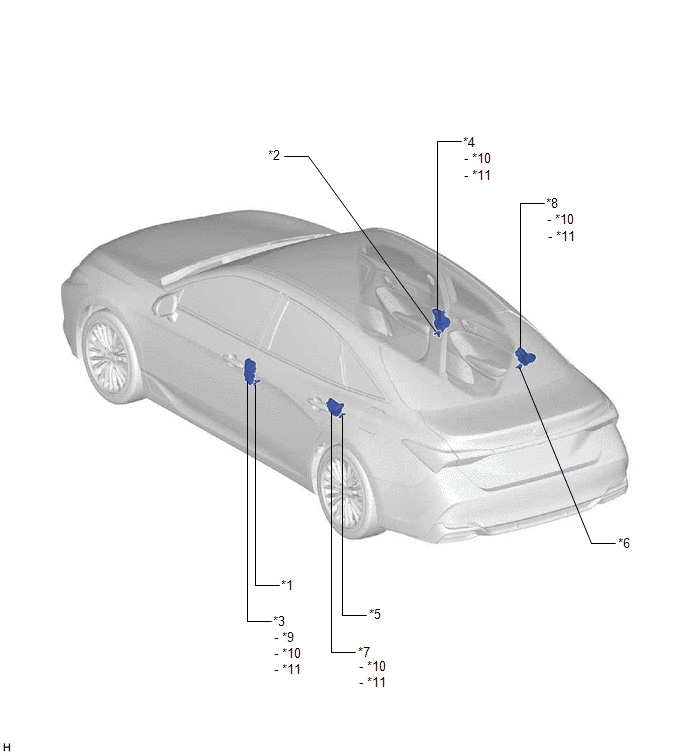

| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *3 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *4 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *5 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *6 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *7 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH | *8 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *9 | DOOR KEY LOCK AND UNLOCK SWITCH | *10 | DOOR LOCK MOTOR |
| *11 | DOOR UNLOCK DETECTION SWITCH | - | - |
