Section 20 (Lighting System (Interior) - Diagnostics & Circuit Tests (Hybrid))
>>
LIGHTING SYSTEM (for HV Model)
>>
Circuit Tests
>>
Interior Light Circuit [04/2018 - ]
>>
Wiring Diagram

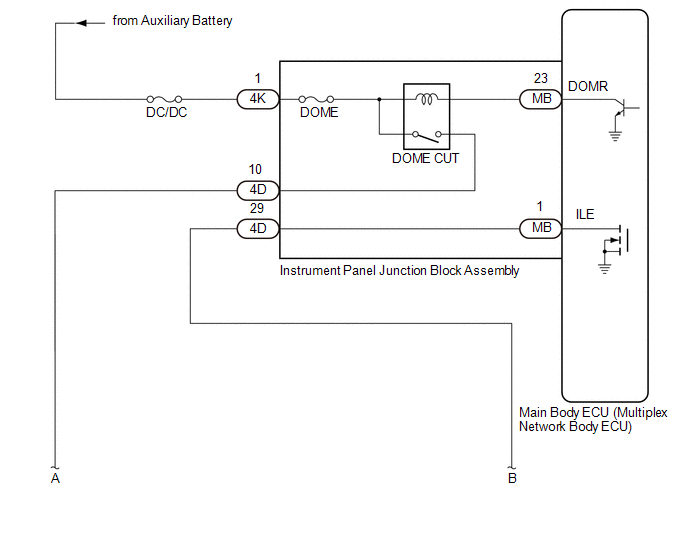

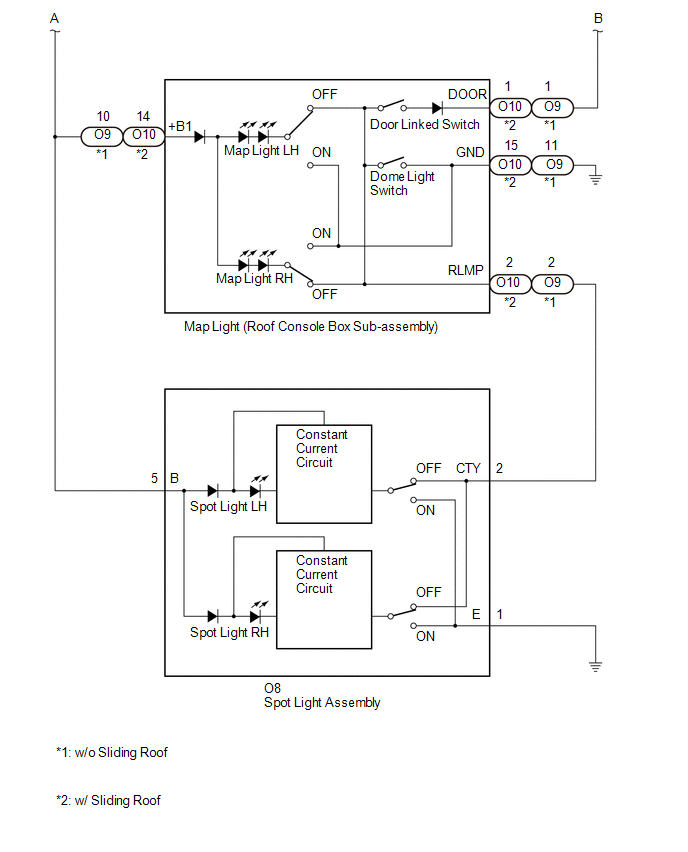

Interior Light Circuit [04/2018 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
