Parts Location [04/2018 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

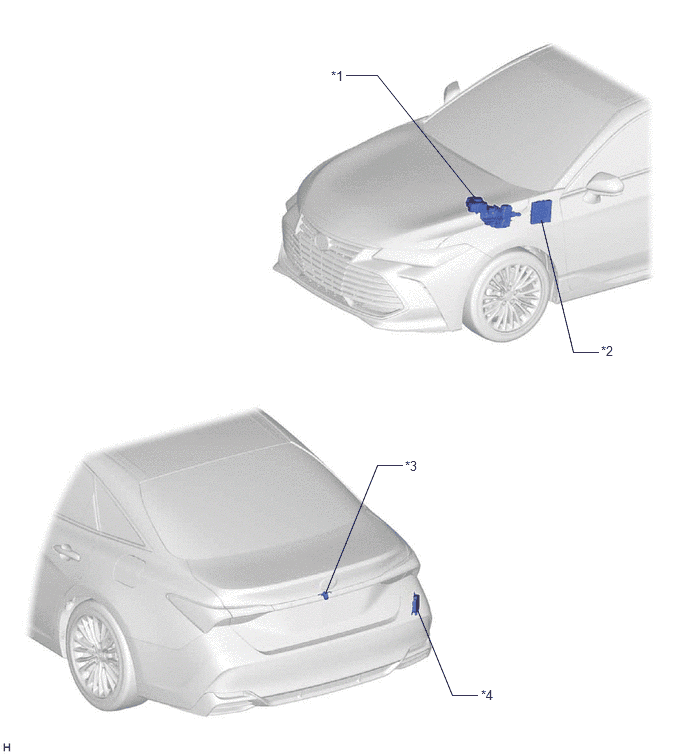

| *1 |
BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY
- SKID CONTROL ECU |
*2 |
HYBRID VEHICLE CONTROL ECU ASSEMBLY |
| *3 |
TELEVISION CAMERA ASSEMBLY |
*4 |
BLIND SPOT MONITOR SENSOR RH |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

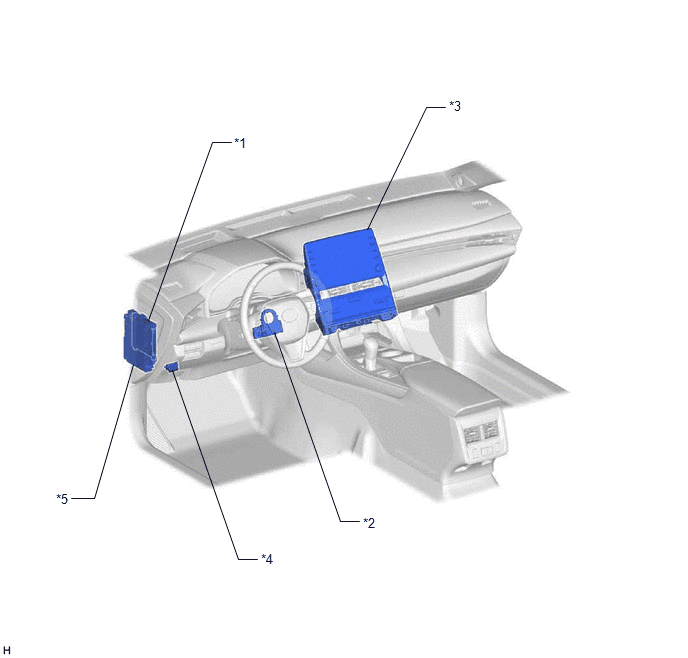

| *1 |
MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
*2 |
STEERING SENSOR |
| *3 |
RADIO AND DISPLAY RECEIVER ASSEMBLY |
*4 |
DLC3 |
| *5 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 2 FUSE
- ECU-DCC NO. 1 FUSE
- ECU-ACC FUSE
- BKUP LP RELAY
- IG1-NO. 1 RELAY |
- |
- |
