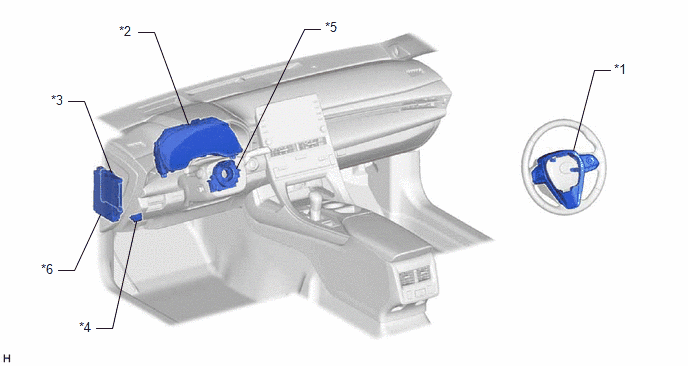

Parts Location [04/2018 -]: Illustration
WARNING: This page is about a different variant/trim than selected.
| *1 | STEERING PAD SWITCH ASSEMBLY | *2 | COMBINATION METER ASSEMBLY - TIRE PRESSURE WARNING LIGHT - MULTI-INFORMATION DISPLAY |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | DLC3 |
| *5 | SPIRAL CABLE SUB-ASSEMBLY | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 4 FUSE - ECU-B NO. 2 FUSE |
