System Diagram [04/2018 -]

WARNING: This page is about a different variant/trim than selected.

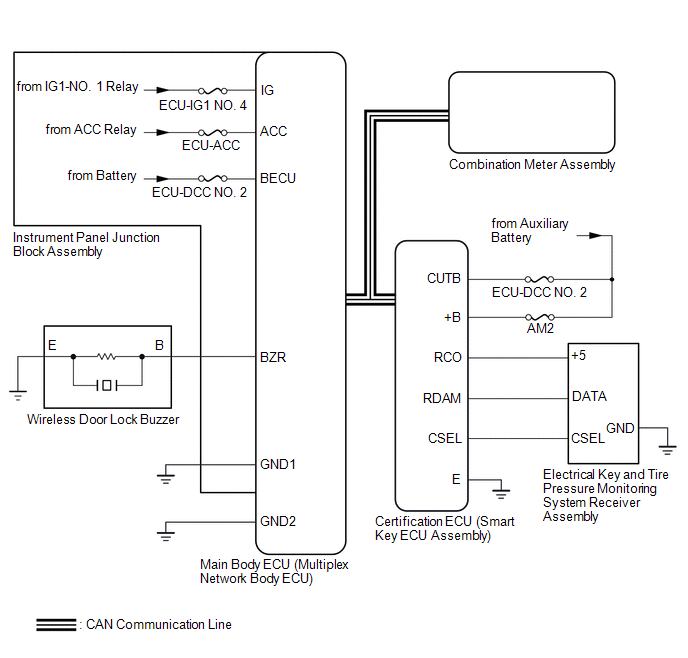

  1. WIRELESS DOOR LOCK CONTROL SYSTEM
    GTY907861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. POWER DOOR LOCK CONTROL SYSTEM

    Refer to SYSTEM DIAGRAM [04/2018 -]
