Parts Location [04/2018 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

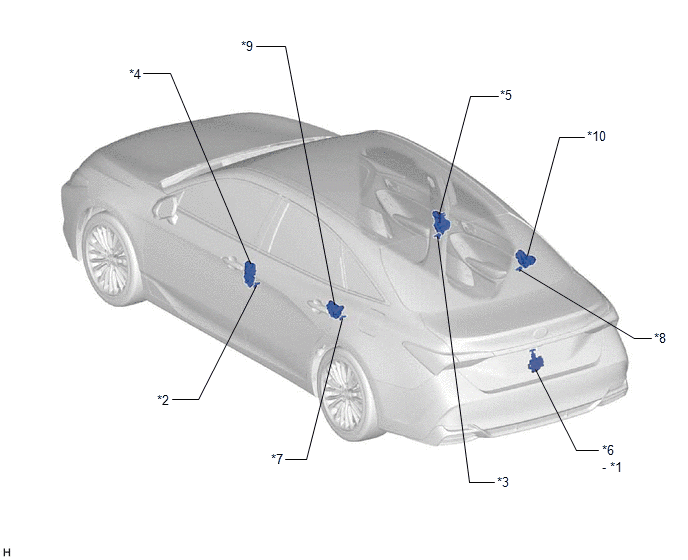

| *1 | LUGGAGE DOOR COURTESY LIGHT SWITCH | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) | *4 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH |
| *5 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH | *6 | LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *8 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *9 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH | *10 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |

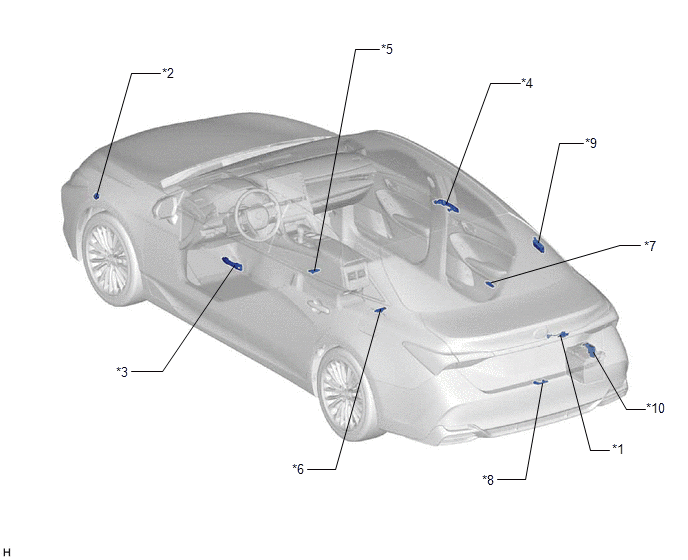

| *1 | LUGGAGE ELECTRICAL KEY SWITCH | *2 | WIRELESS DOOR LOCK BUZZER |
| *3 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Door) - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
*4 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Front Passenger Door) - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
| *5 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR) | *6 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR) |
| *7 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT) | *8 | ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT) |
| *9 | ELECTRICAL KEY AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY | *10 | FUSIBLE LINK BLOCK ASSEMBLY - ECU-B NO. 3 FUSE |
