Parts Location [04/2018 - 08/2020]: Illustration
WARNING: This page is about a different variant/trim than selected.

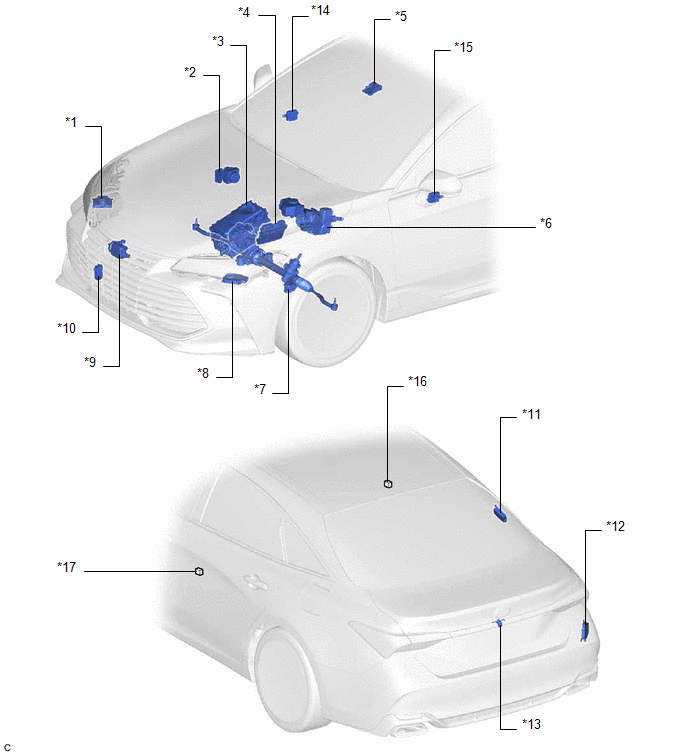

| *1 | HEADLIGHT ECU SUB-ASSEMBLY RH (w/ Cornering Light) |
*2 | BRAKE ACTUATOR ASSEMBLY |
| *3 | INVERTER WITH CONVERTER ASSEMBLY | *4 | ECM |
| *5 | FORWARD RECOGNITION CAMERA | *6 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY |
| *7 | RACK AND PINION POWER STEERING GEAR ASSEMBLY | *8 | HEADLIGHT ECU SUB-ASSEMBLY LH (w/ Cornering Light) |
| *9 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *10 | SWING GRILLE ACTUATOR ASSEMBLY |
| *11 | TIRE PRESSURE WARNING ECU AND RECEIVER | *12 | BLIND SPOT MONITOR SENSOR RH |
| *13 | TELEVISION CAMERA ASSEMBLY | *14 | OUTER MIRROR CONTROL ECU ASSEMBLY RH (w/ Seat Position Memory System) |
| *15 | OUTER MIRROR CONTROL ECU ASSEMBLY LH (w/ Seat Position Memory System) |
*16 | NO. 1 JUNCTION CONNECTOR |
| *17 | NO. 2 JUNCTION CONNECTOR | - | - |

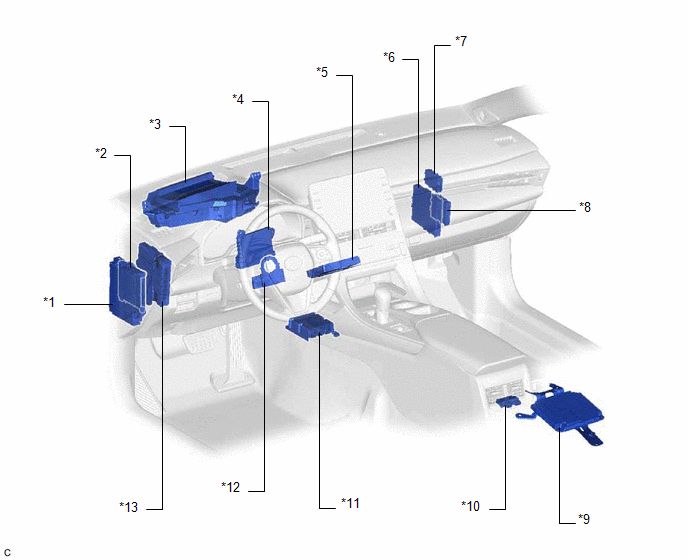

| *1 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | METER MIRROR SUB-ASSEMBLY (w/ Headup Display System) |
*4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | DCM (TELEMATICS TRANSCEIVER) | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) | *8 | CLEARANCE WARNING ECU ASSEMBLY (w/ Intelligent Clearance Sonar System) |
| *9 | PARKING ASSIST ECU (w/ Panoramic View Monitor System) |
*10 | OCCUPANT DETECTION ECU |
| *11 | AIRBAG ECU ASSEMBLY | *12 | STEERING SENSOR |
| *13 | HYBRID VEHICLE CONTROL ECU | - | - |

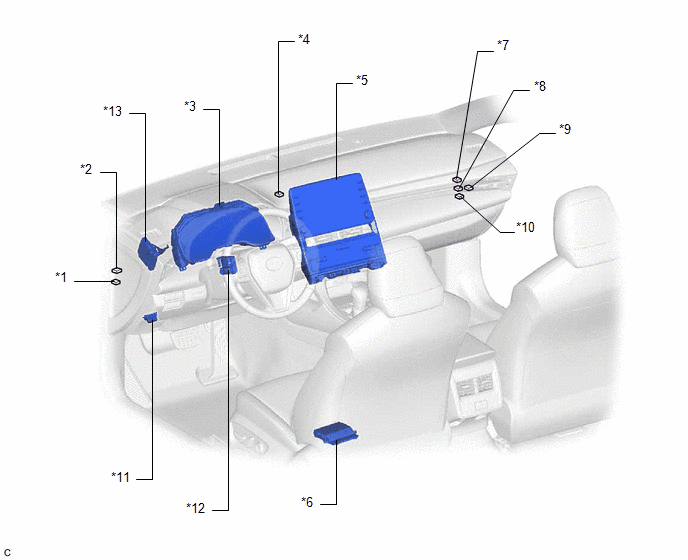

| *1 | NO. 3 JUNCTION CONNECTOR | *2 | NO. 2 CAN JUNCTION CONNECTOR |
| *3 | COMBINATION METER ASSEMBLY | *4 | NO. 3 CAN JUNCTION CONNECTOR |
| *5 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *6 | POSITION CONTROL ECU ASSEMBLY LH (w/ Seat Position Memory System) |
| *7 | NO. 1 CAN JUNCTION CONNECTOR | *8 | NO. 6 CAN JUNCTION CONNECTOR |
| *9 | NO. 7 CAN JUNCTION CONNECTOR | *10 | NO. 4 CAN JUNCTION CONNECTOR |
| *11 | DLC3 | *12 | MULTIPLEX TILT AND TELESCOPIC ECU (w/ Power Tilt and Power Telescopic System) |
| *13 | DRIVING SUPPORT ECU ASSEMBLY | - | - |
