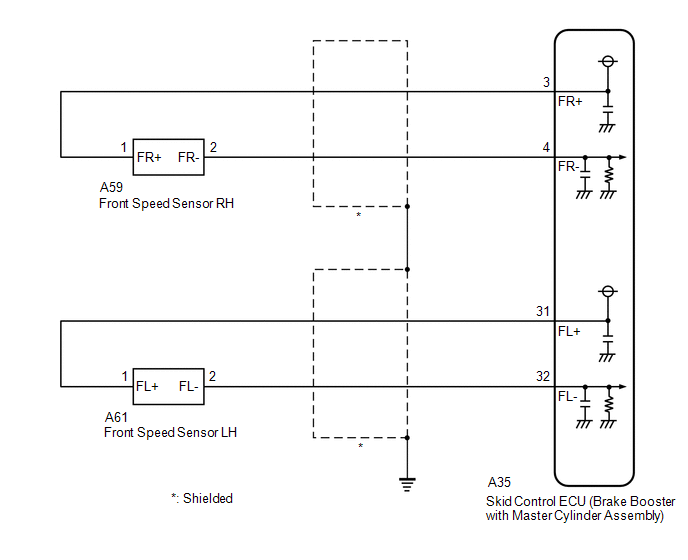

DTC C1413: Front Speed Sensor RH Circuit Output; DTC C1414: Front Speed Sensor LH Circuit Output [04/2018 -]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY873622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
