Section 128 (Electronically Controlled Brake System - Diagnostic Codes (C1311-C1413) (Hybrid))
>>
ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)
>>
DTC C1380: Stop Light Control Relay Malfunction [08/2020 -]
>>

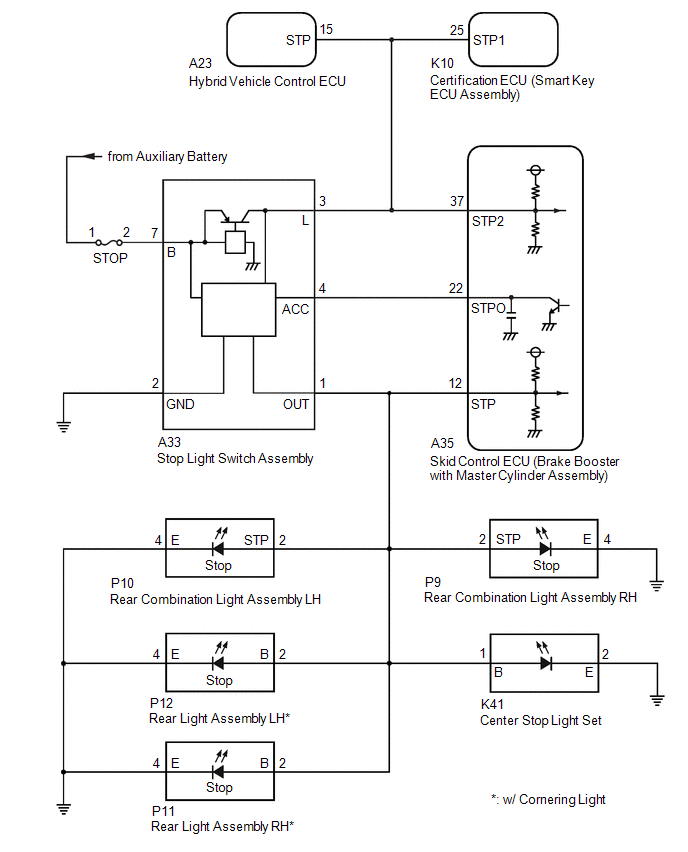

Wiring Diagram
DTC C1380: Stop Light Control Relay Malfunction [08/2020 -]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
