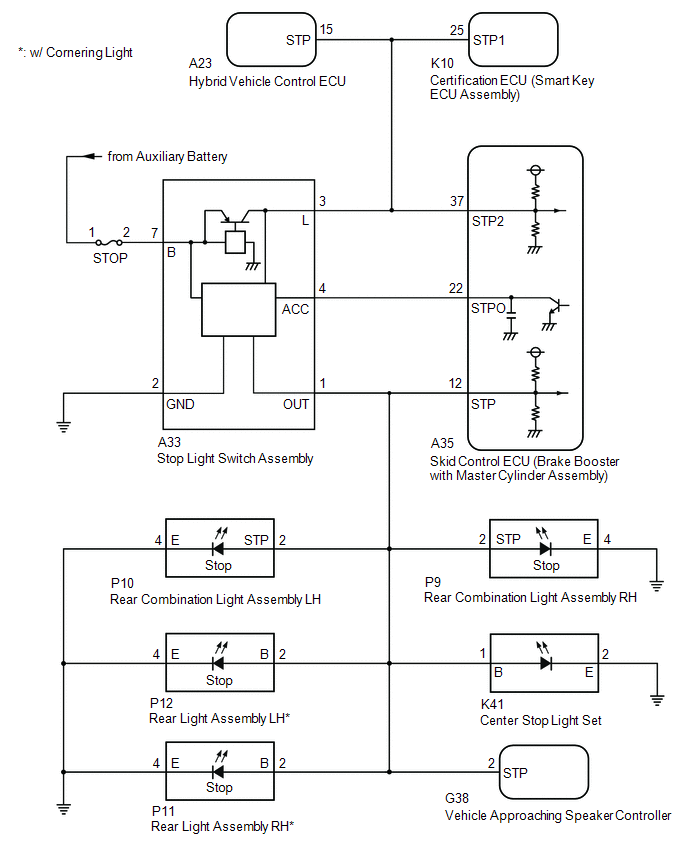

DTC C1380: Stop Light Control Relay Malfunction [08/2019 - 08/2020]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY879638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
