Section 127 (Tire Pressure Warning System - Diagnostic Codes & Symptom Tests (Hybrid))
>>
TIRE PRESSURE WARNING SYSTEM (for HV Model)
>>
Cannot Switch to Automatic ID Registration Mode [04/2018 -]
>>

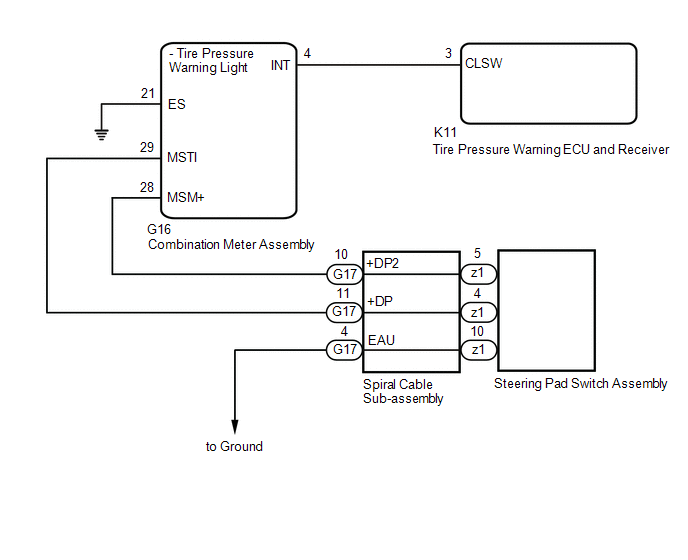

Wiring Diagram
Cannot Switch to Automatic ID Registration Mode [04/2018 -]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
