Section 120 (Fuel Lid Opener System - Diagnostics & Symptom Tests (Hybrid))
>>
FUEL LID OPENER SYSTEM (for HV Model)
>>

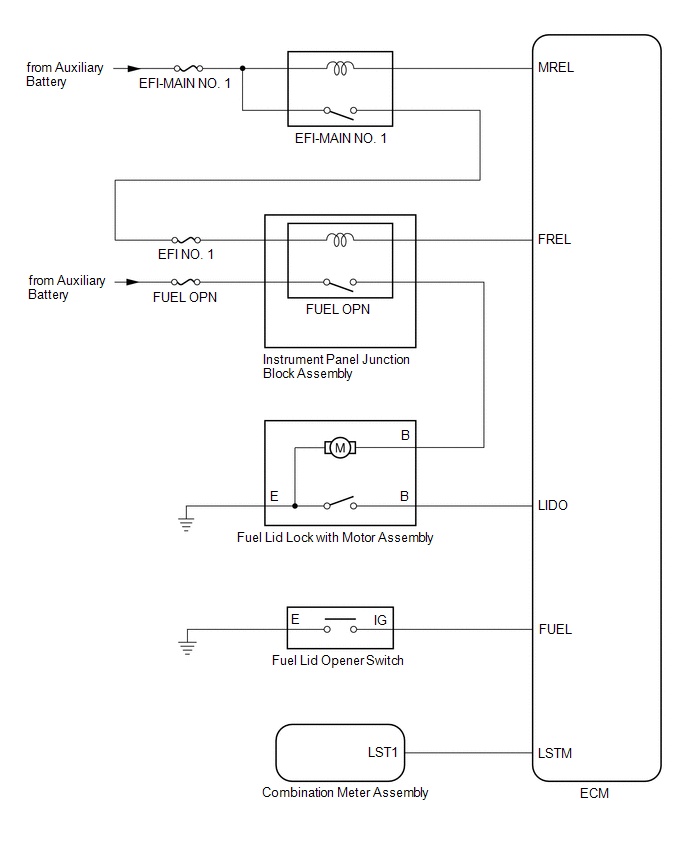

System Diagram [04/2018 - ]
>>
System Diagram [04/2018 - ]
System Diagram [04/2018 - ]
WARNING:
This page is about a different variant/trim than selected.
