DTC P0627-12: Fuel Pump "A" Control Circuit Short to Battery [04/2018 -]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

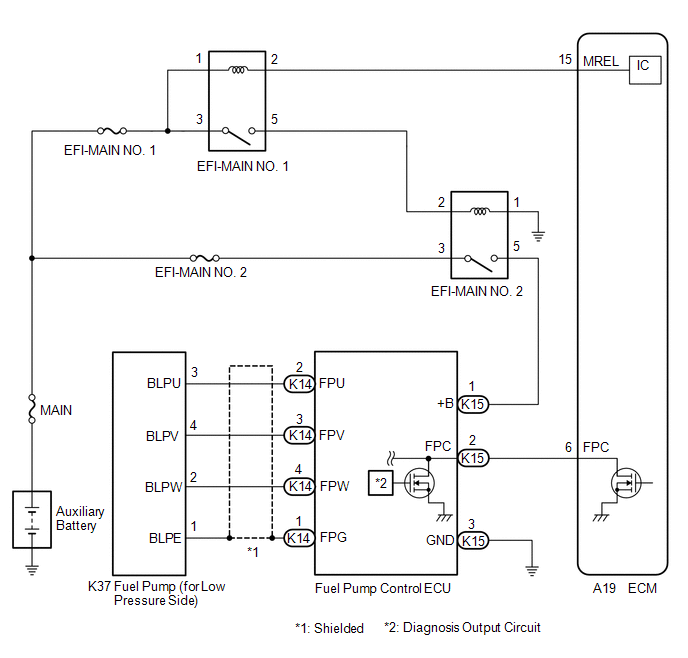

GTY929958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
