When Auxiliary Battery Is Discharged [04/2018 -]

HINT:

The following problems indicate that the auxiliary battery is discharged:

• No display appears on the instrument panel when the power switch is turned on (IG).
• The hybrid system does not start.
• The headlights are dim.
• The sound from the horn is weak.

1. Engage the parking brake.
2. Turn the power switch off and remove the key from the interior detection area.
3. Remove the engine room relay block and junction block assembly cover.

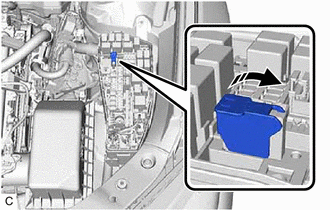

4. Disengage the claw and open the booster terminal cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

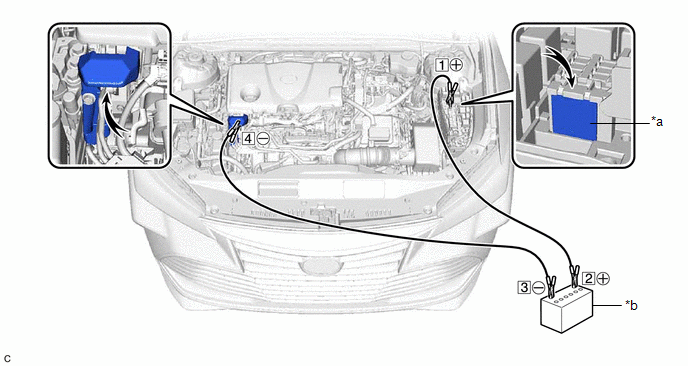

5. Using booster cables, connect the 12 V auxiliary battery of the rescue vehicle to the auxiliary battery of the stalled vehicle as shown in the illustration.

   Connecting Sequence	Connecting Location
   1	Booster terminal (+) of stalled vehicle
   2	Positive (+) auxiliary battery terminal of rescue vehicle
   3	Negative (-) auxiliary battery terminal of rescue vehicle
   4	Position shown in the illustration on stalled vehicle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Booster Terminal

   *b

   Auxiliary Battery of Rescue Vehicle

6. Start the engine of the rescue vehicle and run the engine at a speed slightly higher than usual.
7. Turn the power switch on (READY).
   NOTE:

   Immediately disconnect the booster cables in the reverse order of connection after the hybrid system has started. Do not leave the booster cables connected because they are not designed for recharging purposes.

   HINT:

   If the hybrid system fails to start and "Traction Battery Needs to be Protected Refrain From the Use of N Position" or "Traction Battery Needs to be Protected Shift into P to Restart" is displayed on the multi-information display, the HV battery may be discharged.
