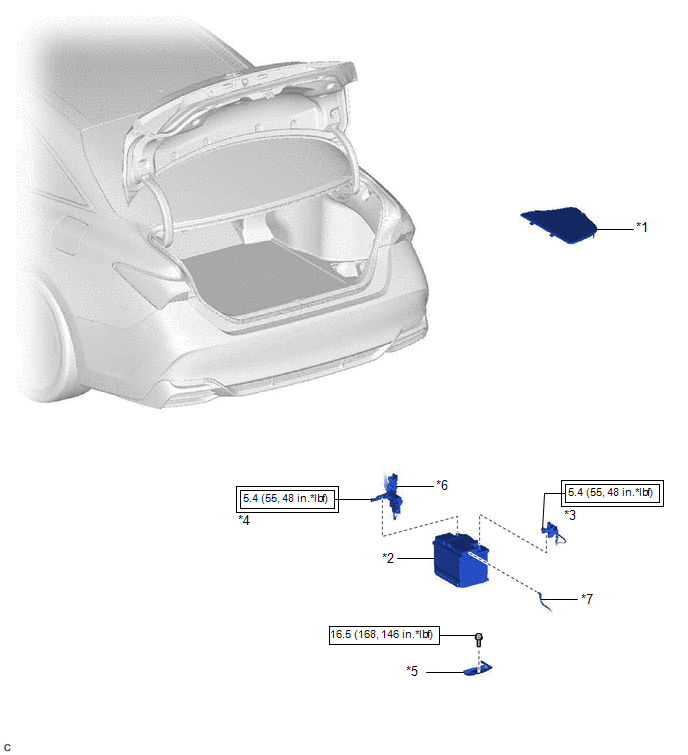

Components [04/2018 - 08/2019]
WARNING: This page is about a different variant/trim than selected.
| Callout | Description | Callout | Description |
| *1 | LUGGAGE TRIM SERVICE HOLE COVER | *2 | AUXILIARY BATTERY |
| *3 | NEGATIVE AUXILIARY BATTERY TERMINAL | *4 | POSITIVE AUXILIARY BATTERY TERMINAL |
| *5 | NO. 2 BATTERY CLAMP | *6 | TERMINAL CONNECTOR COVER |
| *7 | BATTERY HOSE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |
