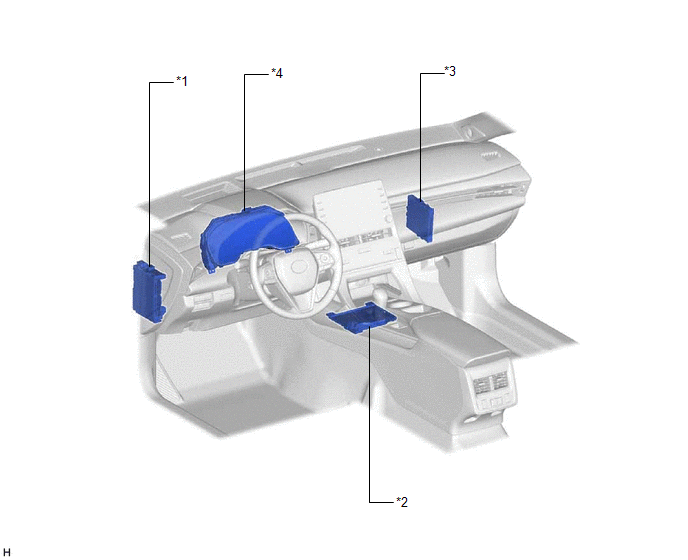

Parts Location [04/2018 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-ACC FUSE
- PANEL FUSE
- ECU-DCC NO. 2 FUSE |
*2 |
MOBILE WIRELESS CHARGER CRADLE ASSEMBLY |
| *3 |
CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
*4 |
COMBINATION METER ASSEMBLY |
