Parts Location [04/2018 - 08/2021]: Illustration

WARNING: This page is about a different variant/trim than selected.

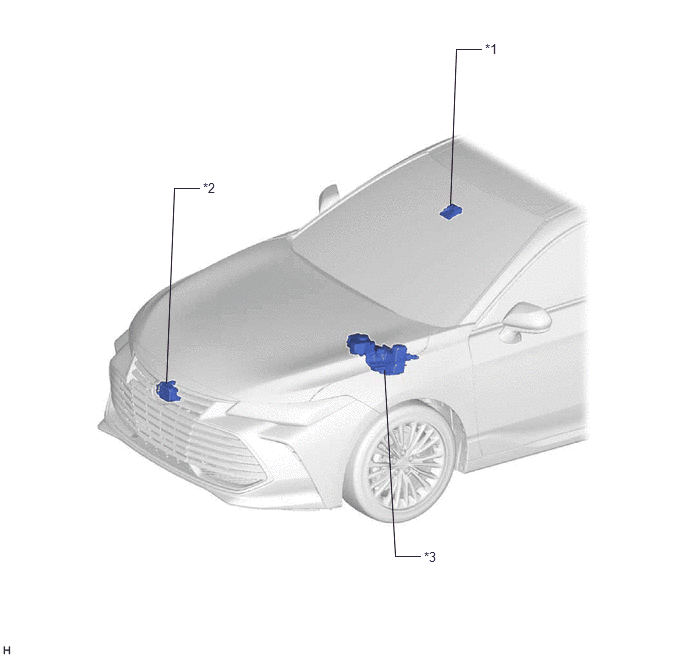

GTY839914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FORWARD RECOGNITION CAMERA *2 MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3 BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY
- SKID CONTROL ECU		 - -

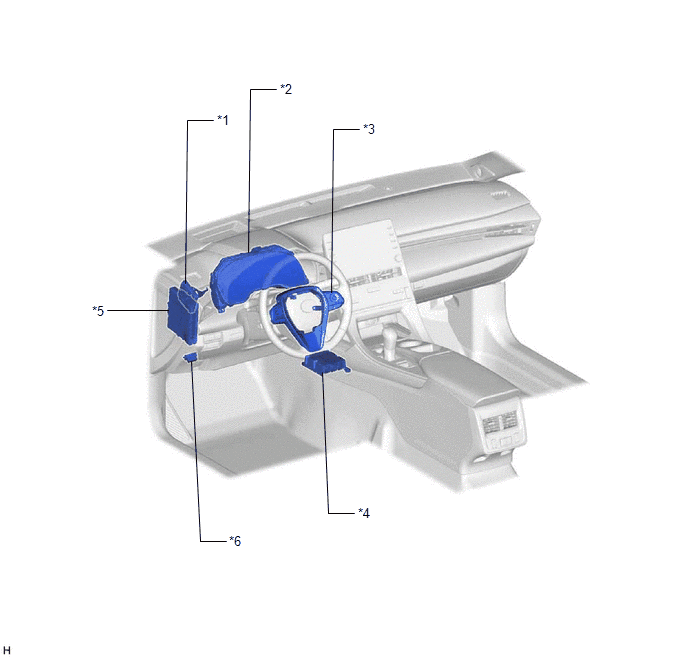

GTY931042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DRIVING SUPPORT ECU ASSEMBLY *2 COMBINATION METER ASSEMBLY
- MULTI-INFORMATION DISPLAY
- PCS WARNING LIGHT
*3 STEERING PAD SWITCH ASSEMBLY *4 AIRBAG ECU ASSEMBLY
- YAW RATE SENSOR
*5 HYBRID VEHICLE CONTROL ECU *6 DLC3

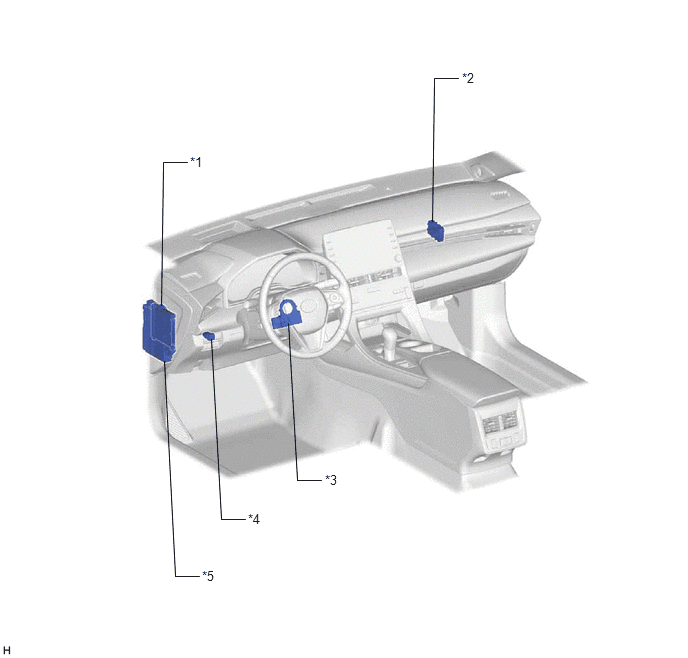

GTY934511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) *2 CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
*3 STEERING SENSOR *4 VSC OFF SWITCH
*5 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU IG1 NO. 4 FUSE		 - -
